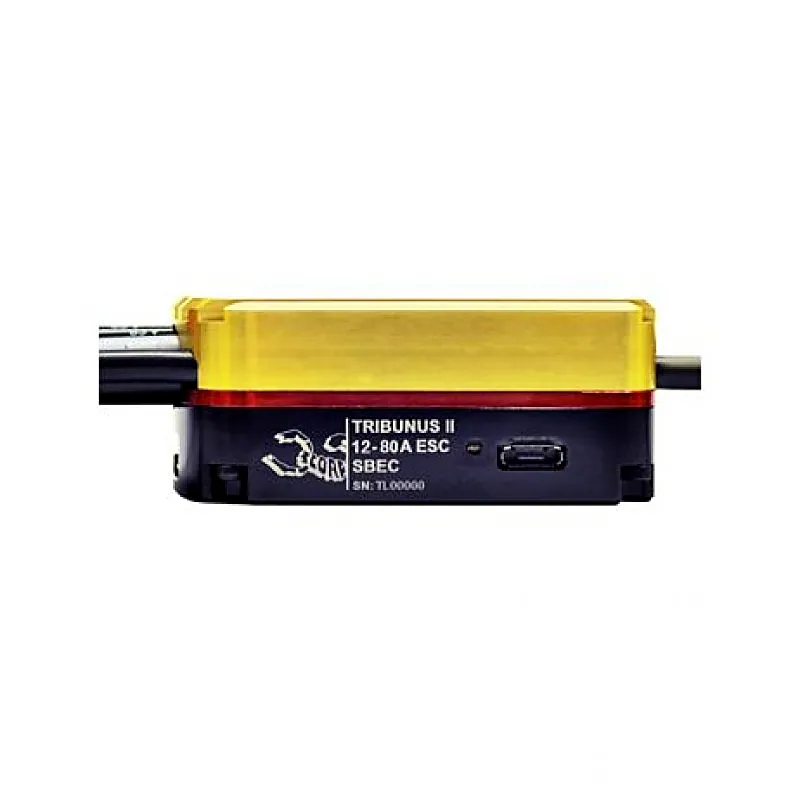

Scorpion Tribunus II 12-80A ESC SBEC

The Scorpion Tribunus II 12-80A ESC SBEC is a high-performance electronic speed controller designed for RC helicopters and airplanes, offering support for both flight modes along with advanced features like stored, unstored, and external governor options. It delivers up to 80A continuous and 120A peak current, supports 12S HvLi batteries (up to 52V), and includes an adjustable SBEC providing 5.1V to 8.1V at 10A continuous (30A peak). With integrated data logging and compatibility with Mikado VControl/VBar, Jeti Telemetry, JLog 3, and Futaba systems, it ensures detailed telemetry and tuning capabilities. ESC setup is possible via Mikado VControl or through PC/Android using a USB micro or OTG cable, with additional support for VLink II and diode adapter cables (sold separately). Compact and lightweight at 76.7 x 36.5 x 25.4 mm and 144g, it offers high efficiency with ultra-low internal resistance (0.4 mOhm x2) and an adjustable drive frequency from 8kHz to 32kHz, making it an ideal choice for demanding RC pilots seeking precision, power, and reliability. Note: Refer to datasheet in the ATTACHMENTS section for more info. regd. the product. Features: Supports airplane and helicopter modes Stored, unstored, and external governor options 80A continuous / 120A peak current, up to 12S (52V) Adjustable SBEC: 5.1V8.1V, 10A continuous / 30A peak Data logging & telemetry (Mikado, Jeti, Futaba, JLog 3) Easy setup via VControl, PC, or Android (cables sold separately) Low resistance (0.4 mOhm x2), 8kHz32kHz drive frequency Firmware upgradeable via SProto software Package Includes: 1 x Scorpion Tribunus II 12-80A ESC SBEC 1 x 3 Pin connecting cable Attachments : Download
