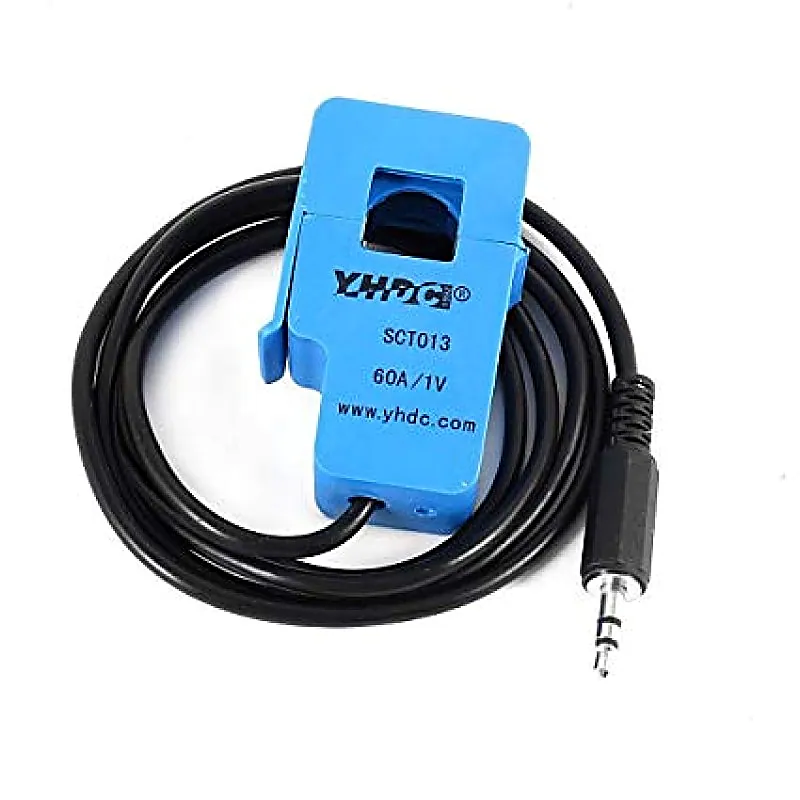

SCT-013-060 60A Non-invasive AC Current Sensor Clamp Sensor

The SCT-013-060 Non-invasive current sensor offers a silicon steel sheet split core structure, hanging installation with leads Length of 1m, used for current measurement, monitor and protection for AC motor, lighting equipment, air compressor, etc. Applications Suitable for the current measuring. Monitoring and protection of AC motor Lighting equipment Air compressor Features : Non-invasive current transformer Suitable for lighting equipment, AC motors, air compressors, monitoring, current measurement, and protection Meet UL94-V0 flame retardant properties Two forms of output current, voltage (voltage output built-in the sampling resistor). Dimensional diagram: Package Includes: 1 x SCT-013-060 Non-invasive AC Current Sensor Clamp Sensor 60A. Specifications :- Model SCT 03-013-060 Rated Input (rms) (A) 60 Max. Input (A) 75 Rated output (V) 1 Linearity <0.2% Accuracy 1% Work voltage (V) 660 Frequency range 50Hz 1KHz Dielectric strength 3.5KV 50Hz 1min Operating Temperature (C) -25 ~ 70 Connecting cable length (m) 1 Length (mm) 57.5 Width (mm) 34 Height (mm) 21 Weight (gm) 64
