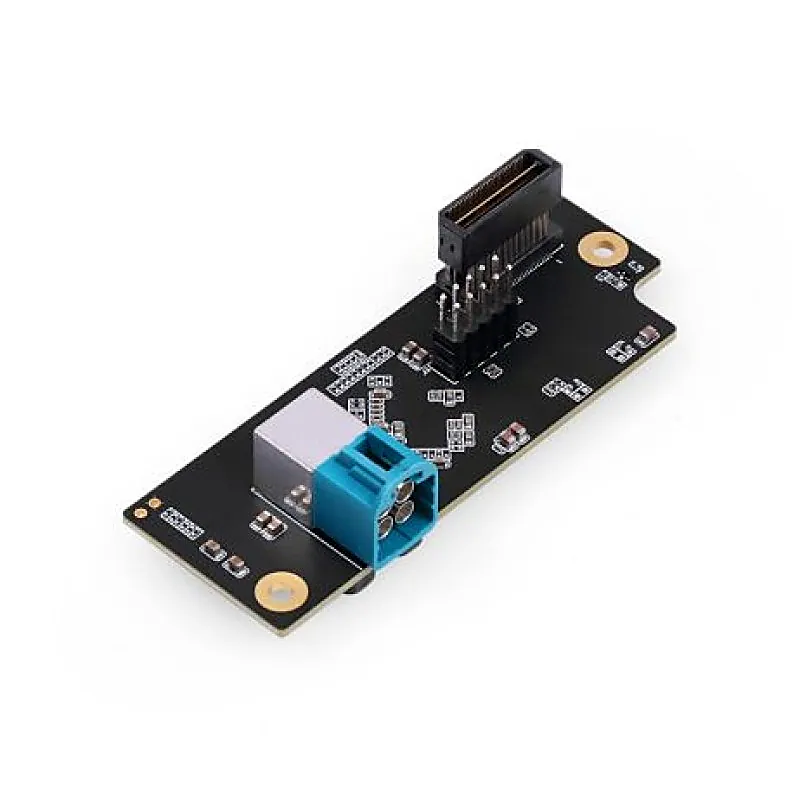

Seeed Studio reComputer Robotics GMSL Camera Board

The Seeed Studio reComputer Robotics GMSL Camera Board is an advanced GMSL extension board built for the reComputer Robotics series powered by Jetson Orin NX and Orin Nano. It enables high-speed data and power transmission through a single coaxial cable, making it highly efficient for robotics, AI vision, and industrial automation. Equipped with the MAX96712 deserializer, GMSL Camera Board supports multiple GMSL cameras and allows simultaneous connection of up to 4 cameras, making it ideal for computer vision and robotics applications. This GMSL Camera Board is designed to provide seamless integration of cameras into robotics systems. With a 6Gbps per channel data rate, reliable operation between -20 to 60, and compact dimensions of 86mm x 31mm x 18mm, it ensures stable performance in real-world environments. It natively supports several Sensing GMSL cameras and the Orbbec Gemini 335LG 3D camera, making it a ready-to-deploy solution for multi-camera robotics projects. Features: High-speed 6Gbps per channel data rate Supports up to 4 GMSL cameras simultaneously MAX96712 deserializer with wide camera compatibility Coaxial cable for both data and power transmission Compact design with industrial-grade temperature range (-20 to 60) Applications: Robotics (Object detection and 3D reconstruction) BEV Detection Package Includes: 1 x Seeed Studio reComputer Robotics GMSL Board 2 x M3 Stud 2 x M3 Screw Attachments : Download
