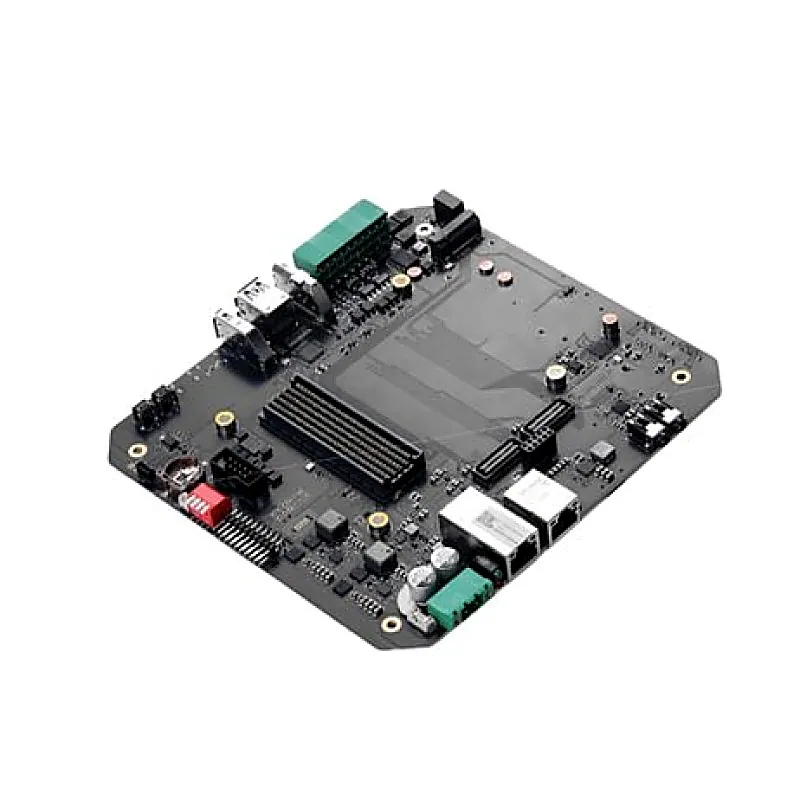

Seeed Studio reServer Industrial J501-Carrier Board for Jetson AGX Orin

Unlock the full power of the JetsonAGXOrin module with the Seeed reServer Industrial J501 carrier board. Designed for advanced robotics, edge AI, smart manufacturing, and industrial IoT, it delivers up to 275 TOPS of AI performance configurable at 1560W. With support for 8K60 video, up to 8 GMSL cameras, and interfaces including Gigabit and 10GbE Ethernet, USB 3.1, SATA, M.2 slots, CAN, RS232/422/485, and HDMI 2.1, it offers exceptional connectivity. Built for harsh environments (-25C to +60C) and wide voltage input (1236V), its a complete high-performance embedded AI deployment board. Features: Compatible with Jetson AGX Orin 64GB (275TOPS) or 32GB (200TOPS) Configurable power modes: 15W 60W for energy-efficient use Supports 8K60 video output and up to 4K60 decoding Rich connectivity: 1GbE + 10GbE, USBA, USBC, HDMI 2.1, SATA, M.2, Mini PCIe Extensive support for GMSL camera expansion (up to 8) via CSI-2 lanes Industrial I/O: CAN, RS232/422/485, DI/DO interfaces Wide industrial temperature range (-25 to +60C) and 1236V power input Designed for NVIDIA JetPack6 and production-level embedded systems Package Includes: 1 x reServer Industrial J501 Carrier Board for Jetson AGX Orin 1 x Terminal Connector 20pin 1 x 2-Pin Terminal Block Power Connector Attachments : Download
