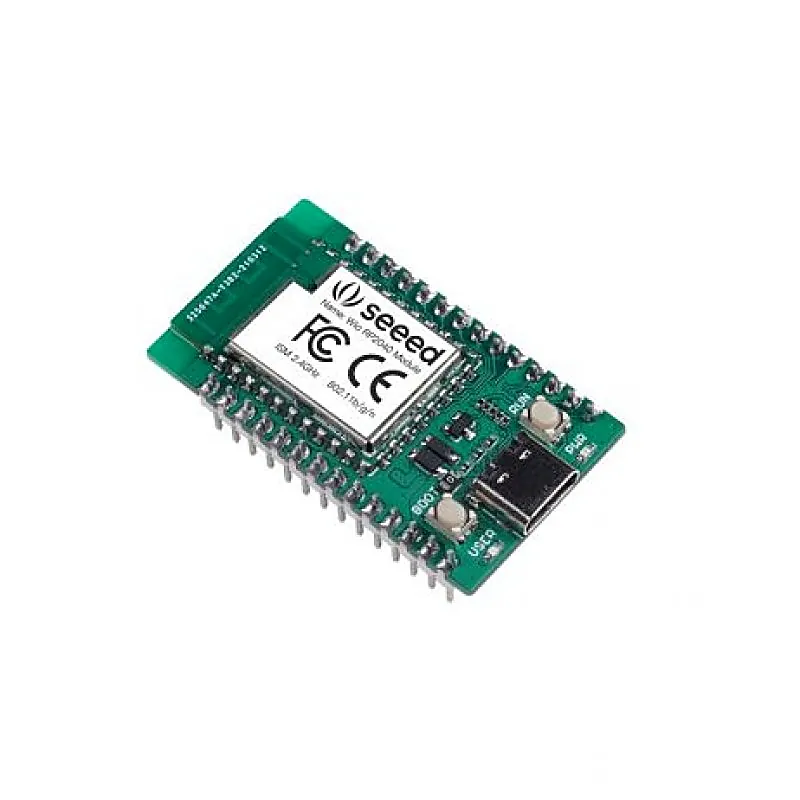

Seeed Studio Wio RP2040 mini Dev Board Onboard Wifi

Wio RP2040 mini Dev Board is a development board based on the Wio RP2040 module with wireless function, supporting MicroPython programming. It has a dual-core 133MHz RP2040 cits hip, which is a low-power microcontroller with wireless functions. With powerful performance and small size, it is a perfect option for various IoT projects development. The board has rich interfaces, including 28 GPIO PINs (19 PINs support PIO and PWM), 2 UART, 4 ADC, 2 SPI, 2 I2C. Some pins can be multiplexed, such as GP12 and GP13 with I2C, SPI, UART functions. Thats why 28 GPIO PINs can achieve more I/O Pins and interfaces. Wio RP2040 mini wireless development board supports a USB Type-C interface, which can supply power and download code. In addition to the onboard power LED light, we also added a user-controllable LED (it is connected to the GP13 pin). A RESET button (the screen is printed as RUN on the board) and a BOOT button (which can be used to re-upload the firmware). Getting Started With Wio RP2040 mini Dev Board Pinout: Features: Raspberry Pi Foundations RP2040 microcontroller Dual Cortex M0+ processors, up to 133 MHz 264 kB of embedded SRAM in 6 banks 2MB QSPI Flash Memory On-board USB-C Connector for programming USB 1.1 Host/Device functionality 20x multifunctional GPIO Pins 2.4GHz Wireless connectivity Support IEEE802.11 b/g/n Support 2.4 ~ 2.4835 GHz Support Ap & Station mode Buttons Boot Reset(RUN) LEDs Power User-programmable LED(GP13) Power Supply(2 methods) 5V via USB-C port(default) VIN(5V~3.6V) and GND header pins Dimensions: 25.8 x 45.5mm Support programming languages MicroPython C/C++ Application: Various Pico projects with wireless functions Wireless control Smart homes Smart toys Package Includes: 1 x Seeed Studio Wio RP2040 mini Dev Board Onboard Wifi Attachments : Download
