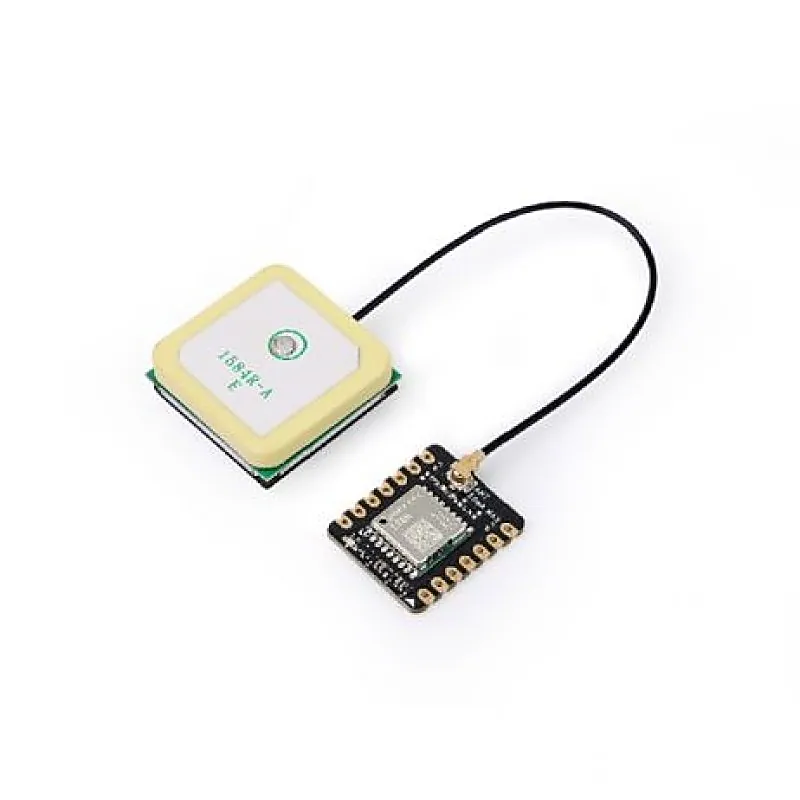

Seeed Studio XIAO ESP32S3 Sense L76K GNSS Module

L76K GNSS Module for SeeedStudio XIAO is a Multi-GNSS (Global Navigation Satellite System) module compatible with all XIAO development boards, supports GPS, BeiDou (BDS), GLONASS and QZSS systems, allows multi-system combined or single-system independent positioning. It also supports AGNSS function, built-in low-noise amplifier and sound surface filter, and provides a good positioning experience of fast, accurate, high-performance. The module comes with a high-performance active GNSS antenna intended to cover GPS L1 C/A, BeiDou B1 and GLONASS L1 bands. The design also has a tiny bright green LED for indicating the 1PPS output on fix. Applications : GPSnavigation GPSTracker SmartCity LogisticsandFreightManagement Item Detail GNSS bands GPS L1 C/A: 1575.42MHz GLONASS L1: 1602MHz BeiDou B1: 1561.098MHz Channels 32 tracking ch/72 acquisition ch TTFF (Time To First Fix) Cold Starts: 30s(w/o AGNSS), 5.5s(w/ GNSS) Hot Starts: 5.5s(w/o AGNSS), 2s(w/ AGNSS) Sensitivity Auto-aquisition: -148dBm Tracking: -162dBm Re-acquisition: -160dBm Accuracy Position: 2.0m CEP Velocity: 0.1m/s Acceleration: 0.1m/s Timing: 30ns UART Interface Baud Rate: 9600~115200bps(9600bps default) Update Rate: 1Hz(default), 5Hz(Max.) Protocol: NMEA 0183, CASIC proprietary protocol Antenna Type: Active Antenna Operating Frequency: 15591606MHz Coaxial Cable: RF1.13 Length=10cm Cable Connector: U.FL Plug RA Current consumption(w/ active antenna) Auto-aquisition: 41mA Tracking: 41mA Standby: 360uA Dimension 18mm x 21mm Features Enhanced Reception: Built-in Low Noise Amplifier and Surface Acoustic Wave Filter for improved sensitivity and noise reduction High Precision: 32/72 channels, -162dBm tracking, -160dBm re-acquisition sensitivity Energy Efficiency : 41mA tracking/acquisition, 360A standby Multi-GNSS Systems : Powered by Quectel L76K, supporting GPS, BeiDou, GLONASS and QZSS Ceramic Antenna: Enhanced signal reception, superior to traditional antennas. Package Includes: 1 x L76KGNSSModule 1 x Active AntennawithiPexconnector 2 x 7PinFemaleHeader 2.54mm
