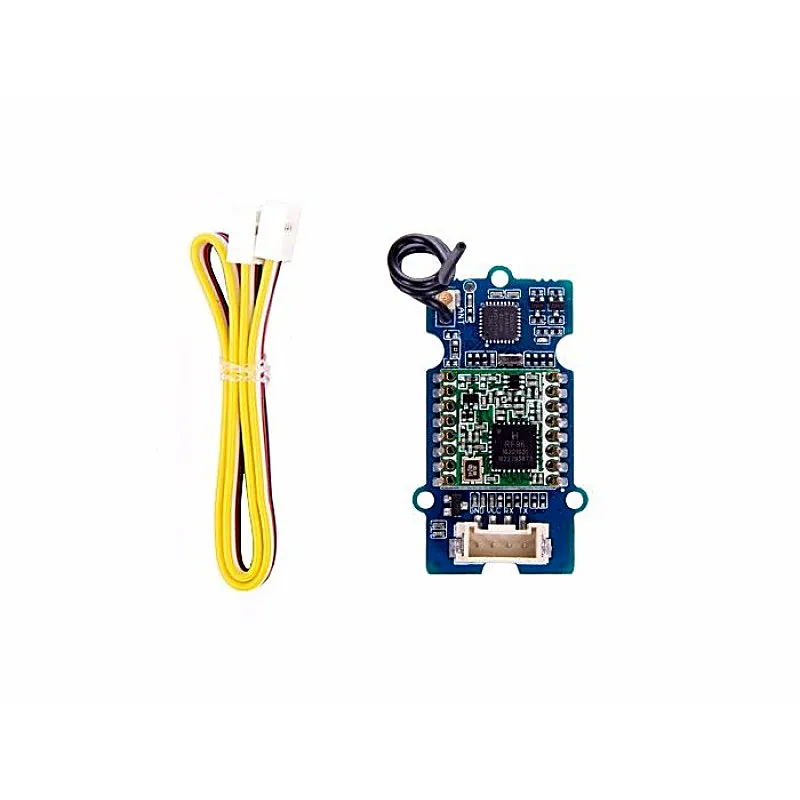

SeeedStudio Grove LoRa Radio 868MHz

Grove is a very powerful platform developed by Seeed Studio to simplify your IoT projects. We have integrated the grove connector to most boards produced by Seeed to make them become a system. This time, we combined Grove with LoRa to provide an ultra-long-range wireless module for you. The main functional module in SeeedStudio Grove LoRa Radio 868MHz is RFM95 , which is a transceiver features the LoRa long range modem that provides ultra-long range spread spectrum communication and high interference immunity whilst mini-missing current consumption. The heart of Grove LoRa Radio 868MHz is ATmega168, a widely used chip with very high-performance and low power consumption, especially suitable for this grove module. There we already integrated a simple wire antenna to receive signal, if the signal is too weak to receive, dont worry, the MHF connector next to the antenna is for adding a second antenna which has MHF interface to gain more signal. This is the 868MHz version, which can be used for 868MHz communication. You can also find the version for 433MHz atGrove LoRa Radio 433MHz. Note: Please keep the antenna vertical to the board and as straight as possible to make the best performance. Please avoid making any big metal object near the antenna and a metal cape is also not recommended if you need to add a cape for your device. Features: Using RFM95 module based on SX1276 LoRa Communication Interface: UART Simple wire antenna or MHF Connector for external high gain antenna +20dBm 100 mW Power Output Capability Useful Links: Tutorial Grove LoRa Radio 433MHz v1.0 Schematics (Eagle files) Grove LoRa Radio 433MHz v1.0 Schematics (PDF files) Grove LoRa Radio 868MHz v1.0 Schematics (Eagle files) Grove LoRa Radio 868MHz v1.0 Schematics (PDF files) RFM95/96/97 Datasheet Atmega168 Datasheet Package Includes: 1 xGrove LoRa Radio 868MHz 1 xGrove cable Attachments : Download Download
