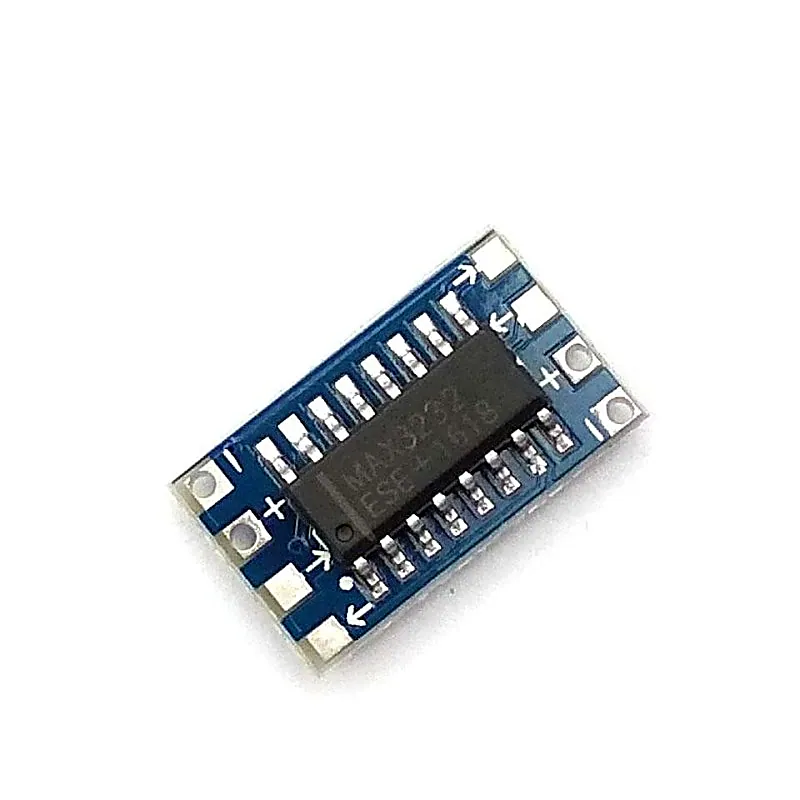

Serial Port Mini RS232 to TTL Converter Adaptor Module Board MAX3232

Serial Port Mini RS232 to TTL Converter Adaptor Module Board MAX3232for electrical level converter. The RS232 to TTL 5V Signal Converter Module is a professional module for projects requiring PC/Laptop RS232 interface to 5V TTL logic. This module converts signals between RS232 voltage levels and TTL voltage levels. It is bi-directional, where TTL signals are converted to RS232 levels and RS232 levels are converted to TTL levels. It is ideal for use in pc interfacing, microcontroller based projects, robotics, or for experimental and educational purposes. Pin-outs : (0V) +(VCC 3.0~5.5V) TTL-TXD TTL-RXD -(0V) +(VCC 3.0~5.5V) RS232-RX RS232-TX Features: High speed, replaceable MAX232 based. The device fitted supports up to 120kbps Works with PCs or Laptops Supports microcontroller UARTs 5V TTL signal levels. Single DC supply: wide input range for 4201 or 5V for 4202 and 4203 Small PCB footprint of 5040mm Low current status LED(s) Very low power consumption Optional onboard PSU for internal/external use for a quick start out of the box. Power can be routed to pin 9 (if required) on the RS232 connector useful for specific applications. Package Includes : 1 x Serial Port Mini RS232 to TTL Converter Specifications :- Chip Model MAX232CSE. Protocol RS232 Operating Voltage (VDC) 3 ~ 5 Max. Baud Rate No more than 120kbps. Operation Full Duplex Receiver Hysteresis 300mV. Transceiver 2 (1 TTL -> RS232 + 1 TTL <- RS232) Operating Tempreture -40C ~ 85C Dimensions in mm (LxWxH) 16.22 x 10.3 x 3.5 Weight(gm) 2
