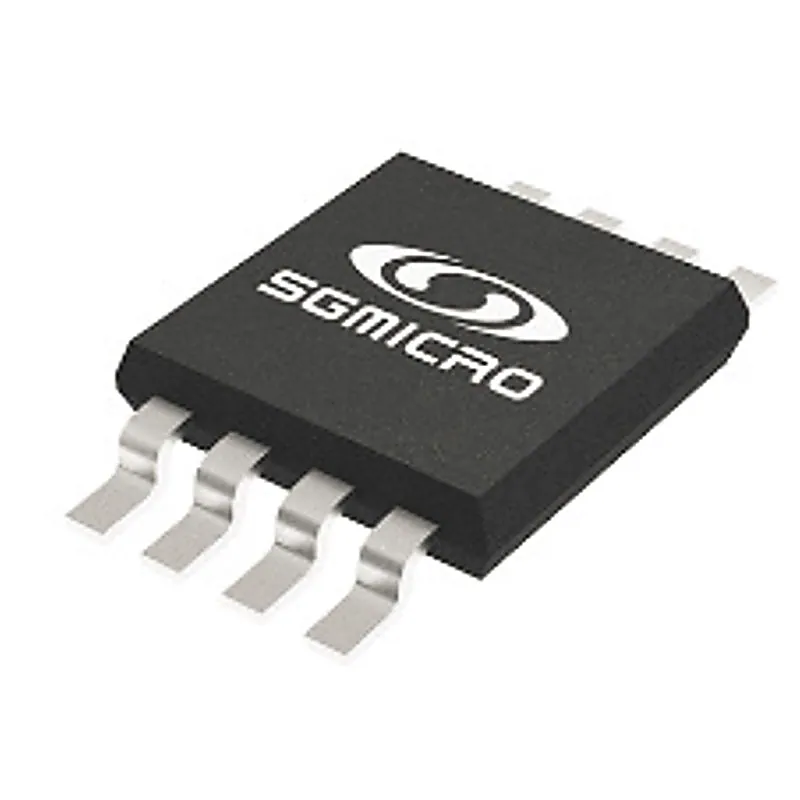

SGM8552 - Dual Rail-to-Rail I/O Precision Operational Amplifier Chip MSOP-8 Package

The SGM8552 is a dual rail-to-rail input and output precision operational amplifier which has low input offset voltage and bias current. It is guaranteed to operate from 2.5V to 5.5V single supply. The rail-to-rail input and output swings provided by the SGM8552 make both high-side and low-side sensing easy. The combination of characteristics makes the SGM8552 a good choice for temperature, position and pressure sensors, medical equipment and strain gauge amplifiers, or any other 2.5V to 5.5V applications requiring precision and long term stability. The SGM8552 is specified for the extended industrial/automotive (-40℃ to +125℃) temperature range. Features:- Low Offset Voltage: 20μV (MAX) Rail-to-Rail Input and Output Swing 2.5V to 5.5V Single-Supply Operation Voltage Gain: 145dB (TYP) at 5V PSRR: 110dB (TYP) CMRR: 105dB (TYP) Ultra Low Input Bias Current: 10pA Low Supply Current: 930μA (TYP) Overload Recovery Time: 60μs (at VS = 5V) No External Capacitors Required -40℃ to +125℃ Operating Temperature Range Applications:- Temperature Measurements Pressure Sensors Precision Current Sensings Electronic Scales Strain Gauge Amplifiers Medical Instrumentation Thermocouple Amplifiers Handheld Test Equipment Specifications:- Supply Voltage : 6V Input Voltage : -VS to (+VS) + 0.1V Differential Input Voltage : -5V to 5V Storage Temperature Range : -65℃ to +150℃ Junction Temperature : 150℃ Operating Temperature Range : -40℃ to +125℃ Lead Temperature Range (Soldering 10 sec) : 260℃ Package Includes:- 1 x SGM8552 - Dual Rail-to-Rail I/O Precision Operational Amplifier Chip MSOP-8 Package
