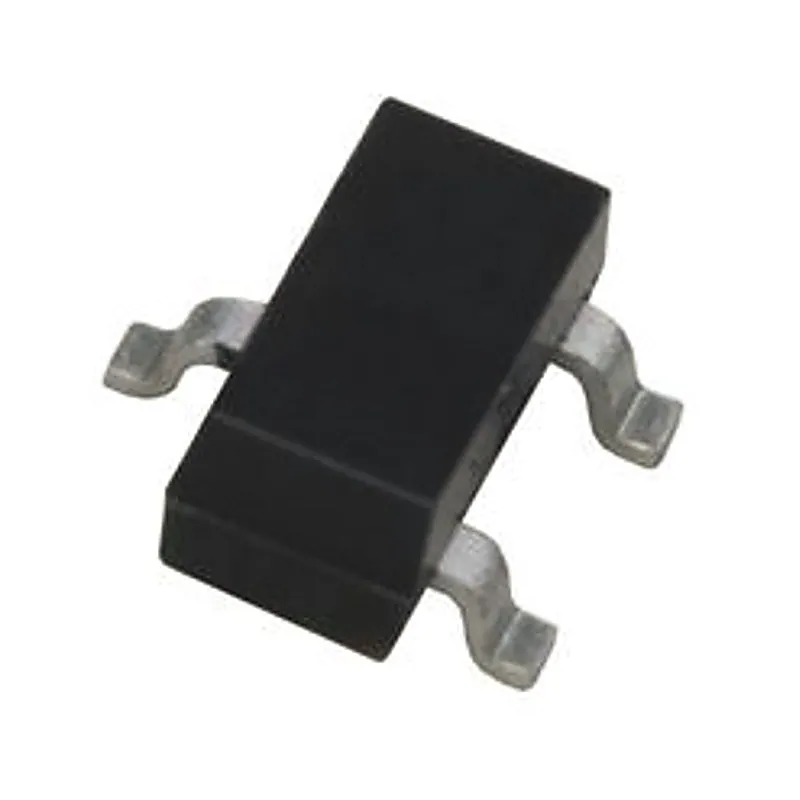

SI2308 MOSFET - (SMD SOT-23 Package) - N-Channel MOSFET
SI2308 MOSFET - (SMD SOT-23 Package) - N-Channel MOSFET
The SI2308 SMD N-Channel 60-V (D-S) MOSFET. The following are the features:- • Halogen-free According to IEC 61249-2-21 Available • TrenchFET® Power MOSFET • 100 % Rg Tested • 100 % UIS Tested Application:- • Battery Switch • DC/DC Converter Specification:- Symbol Parameter Value Unit VDSS Drain-Sou
+ 18% GST (added at checkout)
In stock — 2435 units ready
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
The SI2308 SMD N-Channel 60-V (D-S) MOSFET. The following are the features:- • Halogen-free According to IEC 61249-2-21 Available • TrenchFET® Power MOSFET • 100 % Rg Tested • 100 % UIS Tested Application:- • Battery Switch • DC/DC Converter Specification:- Symbol Parameter Value Unit VDSS Drain-Source Voltage 60 V VGS Gate-Source Voltage ± 20 V ID Drain Current Continuous 2.3 A IDM Drain Current Pulsed (tp≤10µS) 8 A PD Drain Power Dissipation 1.66 W TJ Operating Junction Temperature -55 to +150 ° C TSTG Storage Temperature Range Related Document:- S12308 SMD Data Sheet
