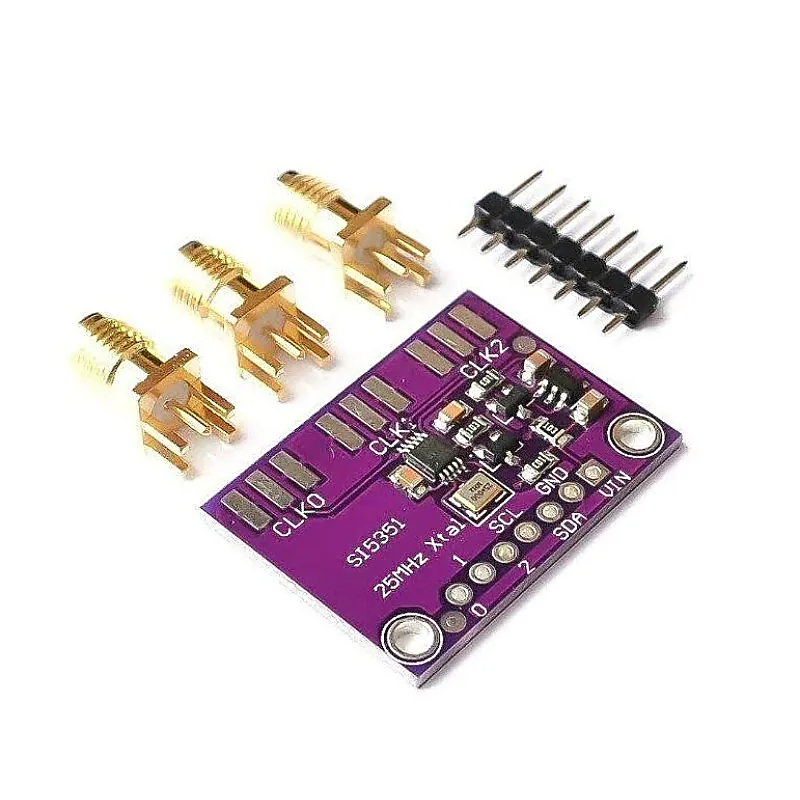

Si5351A I2C 8 Khz 160 Mhz Clock Generator Breakout Board Module

The Si5351A clock generator is an I2C controller clock generator. It uses the onboard precision clock to drive multiple PLLs and clock dividers using I2C instructions. By setting up the PLL and dividers you can create precise and arbitrary frequencies. There are three independent outputs, and each one can have a different frequency. Outputs are 3Vpp, either through a breadboard-friendly header or, for RF work, an optional SMA connector. Applications: HDTV, DVD/Blu-ray, set-top box Audio/video equipment, gaming Printers, scanners, projectors Residential gateways Networking/communication Servers, storage XO replacement Features: Generates up to 8 non-integer-related Frequencies from 8 kHz to 160 MHz I 2 C user-definable configuration Exact frequency synthesis at each output (0 ppm error) Highly linear VCXO The optional clock input (CLKIN) Low output period jitter: 100 ps pp Configurable spread spectrum selectable at each output Operates from a low-cost, fixed frequency crystal: 25 or 27 MHz Supports static phase offset Programmable rise/fall time control Glitchless frequency changes Package Includes: 1 x Si5351A I2C Clock Generator Breakout Board Module
