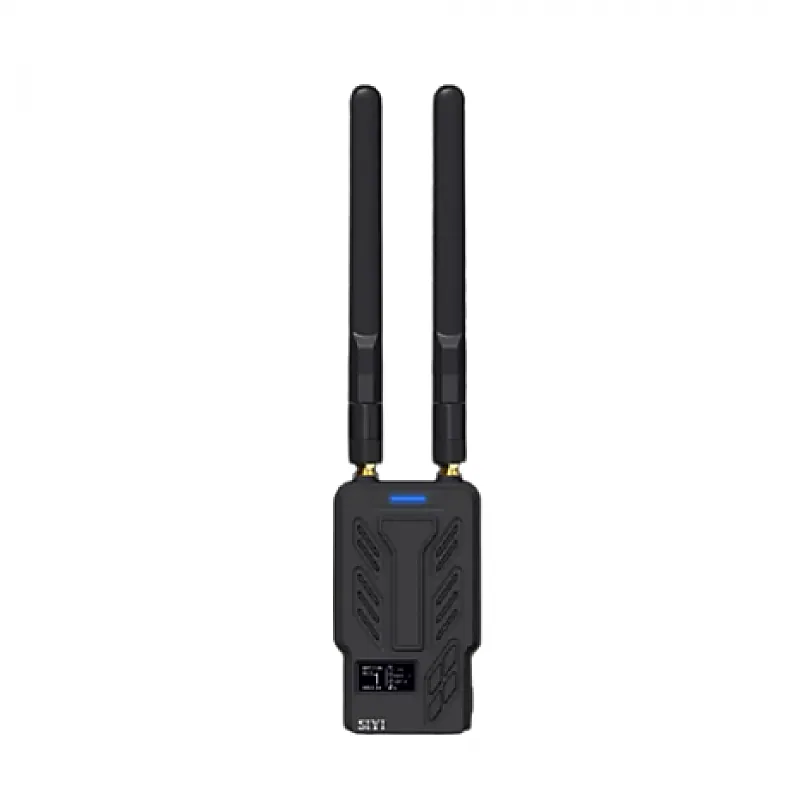

SIYI HM30 Full HD Digital Image Transmission FPV System

The SIYI HM30 Full HD Digital Image Transmission FPV System is an advanced solution for first-person view (FPV) enthusiasts. This system offers high-definition video transmission with exceptional clarity, enabling real-time, immersive experiences for drone pilots and remote operators. Its compact design ensures easy integration with various drones and RC vehicles. With reliable digital transmission technology, it provides stable and lag-free video feeds, making it an ideal choice for capturing breathtaking aerial footage and enhancing the FPV flying experience. Specifications: Model: HM30 Max Transmission Range: 30 kilometers (unobstructed, free of interference) Channels: 16 communication channels Compatible Flight Controllers: Pixhawk Based Flight Controller or APM SN-L+ Fixed Wing Flight Controller MATEK H743 / F405 or any flight controllers with UART data link output Compatible Android GCS (standard RTSP video stream): SIYI FPV QGroundControl Compatible Windows GCS (standard RTSP video stream): QGroundControl Mission Planner Ground Unit Monitor Display: 0.96-inch OLED Screen Dimensions (antennas and battery excluded): 109 x 61 x 28 mm Weight (antenna and battery excluded): 132 g Compatible Battery Type: NP-F550 / F750 / F770 / F950 / F970 series quick release batteries (HM30 Fly More Combo comes with NP-F750 battery) Fast Charging Protocol: PD 30W Antenna Gain: Standard Omni Antennas: 5 dBi Standard Long Range Antennas: 11 dBi Power Consumption: 5 W Interface & Ports: S.Bus / PPM RC Signal Input: RC (GH1.25 4-Pin) Datalink Output: UART (GH1.25 4-Pin) Ethernet Port: LAN (GH1.25 4-Pin) Power Output: VCC (GH1.25 4-Pin) USB Video Output / Charging / Firmware Upgrade / USB WiFi: Type-C Power Input: PWR (XT30) Tripod Connector: 1/4-inch Screw Hole Waterproof Level: IP53 Working Temperature: -10 to 50 Air Unit Signal Output: 16 channels of S.BUS, 5 channels of PWM Interface & Ports: SBUS: 3-Pin Datalink (to FC): UART 4-Pin PWM Channel 1 to 5: 6-Pin Video Input: Ethernet 8-Pin Firmware Upgrade: Type-C Dimensions (antenna excluded, fan included): 70 x 55 x 16 mm Weight (antenna excluded): 74 g Antenna Gain (standard omni): 5 dBi Power Input: 11 to 16.8 V (expandable to 4S to 18S with BEC) Working Temperature: -10 to 50 FPV Camera Frame & Bitrate: 720p 30fps 1.57Mbps H.265 (or 1080p 30fps 2.3 Mbps H.265 only as the reference to DIY configuration) Sensor: 1/2.9 CMOS Effective Resolution: 3 MP Lens: 3.2 mm, F/2.8 Camera Angle: FOV 105 Dimensions: 42 x 42 x 25 mm Weight: 23 g Cable Lens: 1000 mm Working Temperature: -10 to 55 Ground Unit HDMI Output Converter (Optional) HDMI Port Type: Standard HDMI Power Consumption: 2.5 W Dimensions: 52 x 52 x 16 mm Weight: 150 g Working Temperature: -10 to 55 Features: High-definition digital video transmission. Seamless FPV experience for drone pilots. Compact and easily integrated with drones. Reliable and lag-free video feeds. Enhances aerial photography and videography. Ideal for remote operators seeking real-time clarity. Advanced technology for immersive FPV adventures. Package Includes: 1 x SIYI HM30 Full HD Digital Image Transmission FPV System Attachments : Download
