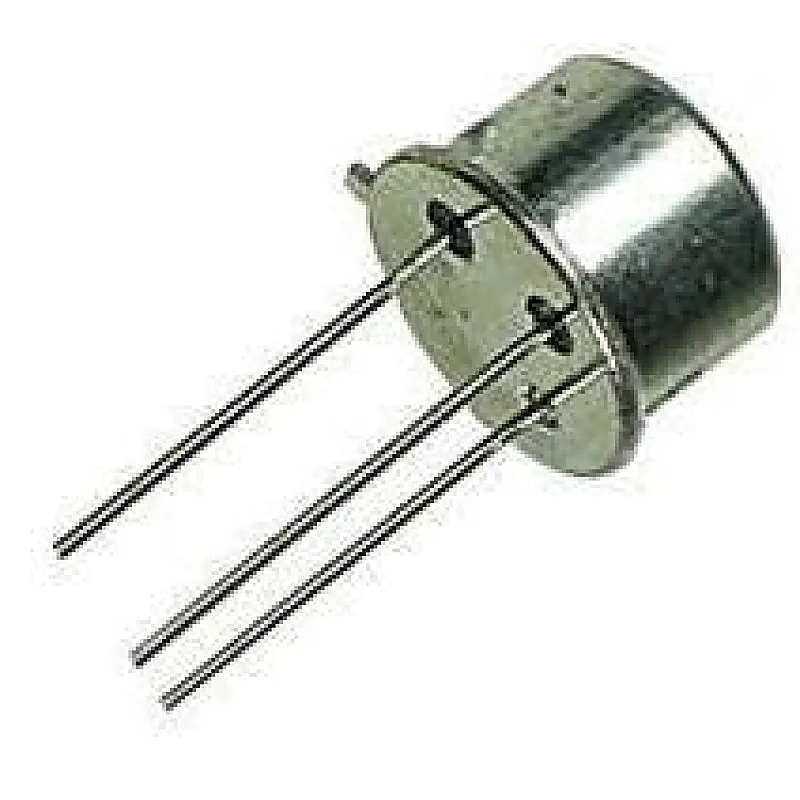

SL100 NPN General Purpose Medium Power Transistor 50V 500mA TO-39 Metal Package
SL100 NPN General Purpose Medium Power Transistor 50V 500mA TO-39 Metal Package
SL100 is a three layer NPN device within the working range, the collector current IC is a function of the base current IB, a change in the base current giving a corresponding amplified change in the collector current for a given collector emitter voltage VCE. Features:- • High Ruggedness • Simple dr
+ 18% GST (added at checkout)
In stock — 230 units ready
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
SL100 is a three layer NPN device within the working range, the collector current IC is a function of the base current IB, a change in the base current giving a corresponding amplified change in the collector current for a given collector emitter voltage VCE. Features:- • High Ruggedness • Simple drive requirements • High safe operating area • For low distortion complementary designs • Easy to carry and handle Detailed Specifications:- Transistor Polarity NPN Collector−Emitter Voltage (VCEO) 50V Collector−Base Voltage (VCBO) 60V Continuous Collector Current (Ic) 0.5A Emitter Base Voltage (VEBO) 5V Power Dissipation (Pd) 800mW Operating Temperature Range -65 - 200°C Output Capacitance (Cobo) 20pF DC Current Gain (hFE) 40-300 Related Documents:- SL100 Transistor Datasheet
