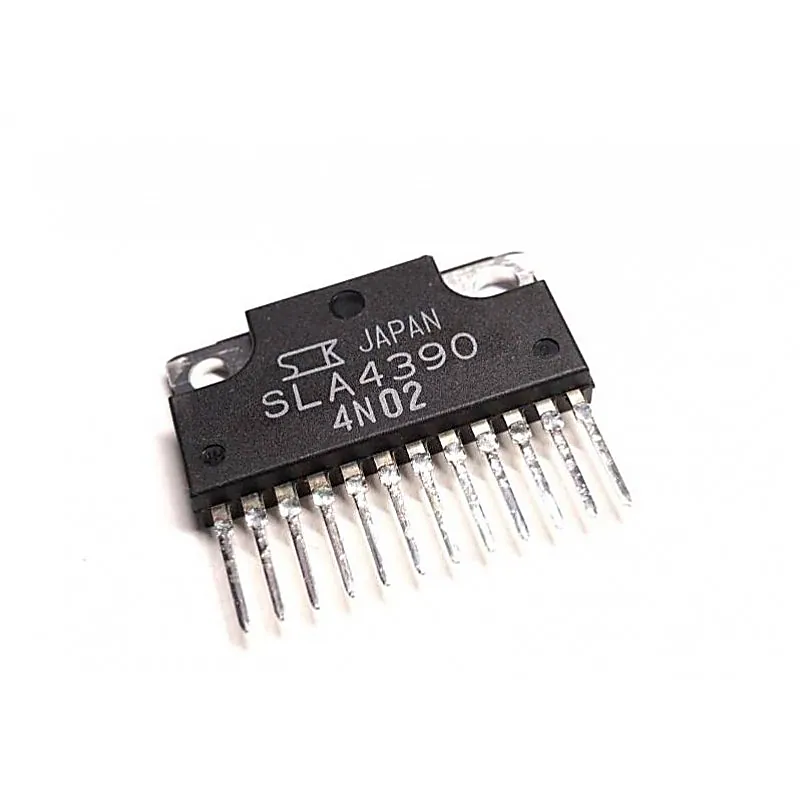

SLA4390 PNP + NPN Darlington H-bridge Transistor SIP-12 Package
SLA4390 PNP + NPN Darlington H-bridge Transistor SIP-12 Package
SLA4390 is a circuit that is used primarily to control motors, they allow for forward and reverse motion of the motors. You can also build it with discrete and simple components such as with transistors and resistors. Features:- • Low saturation voltage • Simple drive requirements • High safe operat
+ 18% GST (added at checkout)
In stock — 236 units ready
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
SLA4390 is a circuit that is used primarily to control motors, they allow for forward and reverse motion of the motors. You can also build it with discrete and simple components such as with transistors and resistors. Features:- • Low saturation voltage • Simple drive requirements • High safe operating area • For low distortion complementary designs • Easy to carry and handle Detailed Specifications:- Transistor Polarity PNP+NPN Collector−Emitter Voltage (VCEO) 100+100V Collector−Base Voltage (VCBO) 100+100V Continuous Collector Current (Ic) 5+5A Emitter Base Voltage (VEBO) 6+6V Operating Temperature Range -40 - 150°C DC Current Gain (hFE) 2000 Power Dissipation (Pd) 25W Related Documents:- SLA4390 Transistor Datasheet
