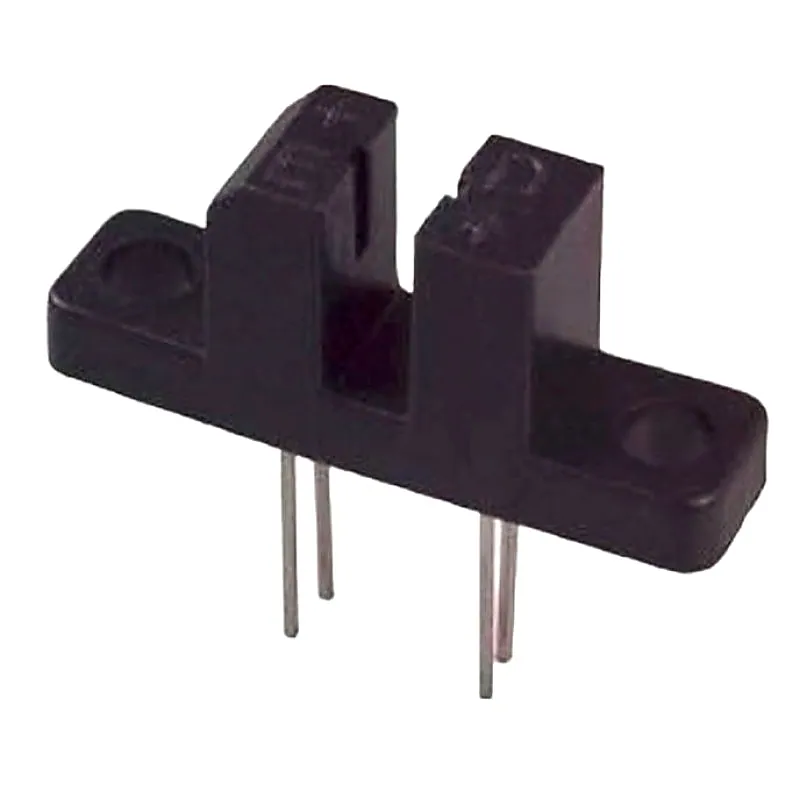

Slotted Opto Isolator Module - MOC-7811 Encoder sensors or also known as Slotted couplers and Opto-Interrupters are widely used for applications required to monitor any interruptions. The MOC module comes in a plastic moulding that houses an emitter and receiver section. Pin Configuration of MOC-781
+ 18% GST (added at checkout)
In stock — 511 units ready
- Pin 1 : Cathode
- Pin 2 : Collector
- Pin 3 : Anode
- Pin 4 : Emitter
- Works as a switch, to monitor on/off signal.
- Can be used to determine the RPM of a motor.
- Can be used as smoke sensors.
- Used in End stops/Parking positions for motors in 3D printers/CNC machines.
- To monitor any interruption.
- Input Voltage: 5V
- Current limit: 50mA
- Transistor output(Vceo): 30V
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
Slotted Opto Isolator Module - MOC-7811 Encoder sensors or also known as Slotted couplers and Opto-Interrupters are widely used for applications required to monitor any interruptions. The MOC module comes in a plastic moulding that houses an emitter and receiver section. Pin Configuration of MOC-7811 Pin 1 : Cathode Pin 2 : Collector Pin 3 : Anode Pin 4 : Emitter Applications:- Works as a switch, to monitor on/off signal. Can be used to determine the RPM of a motor. Can be used as smoke sensors. Used in End stops/Parking positions for motors in 3D printers/CNC machines. To monitor any interruption. Features and Specifications:- Input Voltage: 5V Current limit: 50mA Transistor output(Vceo): 30V Package Includes:- 1 x Slotted Opto Isolator Module - MOC-7811
