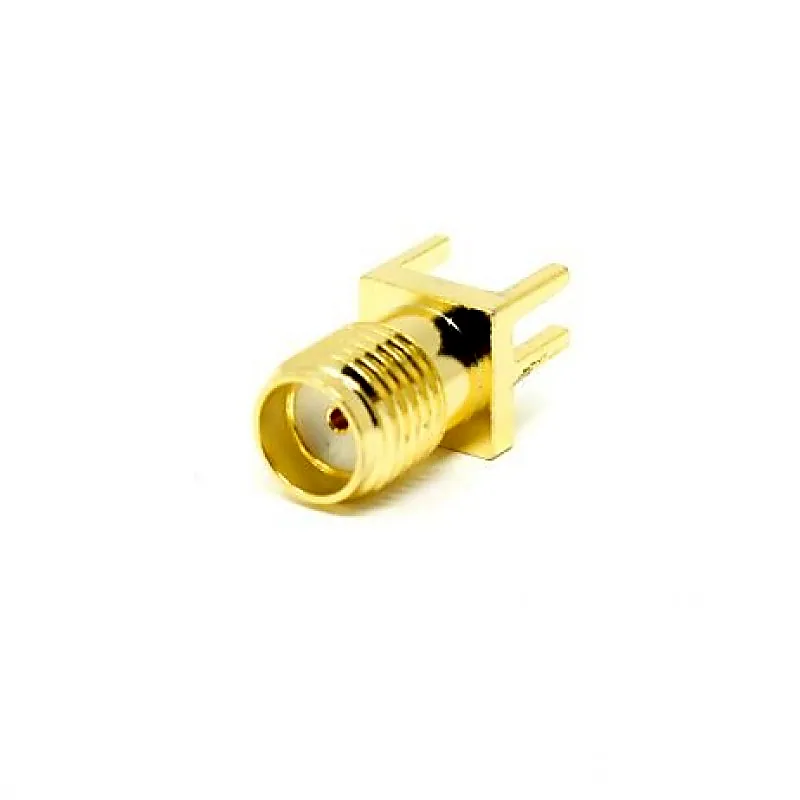

SMA Female Straight Edge PCB Mount Connector

These connectors are designed to provide compatibility with industry-grade 50 ohm and 75-ohm cables for longer operational life with gold and nickel plating for environmental protections. Appliance: Aerospace and Defense: Hand-held field Device and Instrumentation Medical : Instrumentation Commercial Vehicle : Bluetooth and GPS Telecommunications : Wireless Base Stations, Cellular Mobile System Data/Communications : Wifi, WiMAX Industrial : Active and passive components, instrumentation, M2M Communications, Vehicle Tracking System Features: SMA Connector,Female,Straight,PCB Connector,Plate Edge Mount,Copper,Gold Plating; Excellent electrical performance up to 18GHz with low reflection; Thread type coupling mechanism ensure small loss and high security in compact design; Electrical Characteristics Impedance 50 ohm Frequency Range: 0~6 GHz VSWR: Straight type 1.3max / R/A type 1.5max Dielectric Withstanding Voltage: 1000 V rmsmin for RG142, RG405 750 V rms min. for RG316, RG402 500v rms min. for RG178 Working Voltage:500 V rms max. for RG142, RG405 375 V rms max. for RG316, RG402 170 V rms max. for RG178 Center Contact Resistance 6.0 m (Milliohms max.) Outer Contact Resistance 2.0 m (Milliohms max.) Insulation Resistance 5 x 10 m (Megohms min.) Mechanical Characteristics Coupling: 1/4-36 thread Contact Retention: 15 in-lbs min. Coupling nut torque: 30 in-lbs. min. Durability(mating) 500 cycles (For Beryllium Copper Contact) Environmental Characteristics Temperature Range: -55C ~ +155C Vibration: MIL-STD-202 Meth.204 Corrosion resistance: MIL-STD-202 Meth. 101 Package Includes: 1 x SMA Female Straight Edge PCB Mount Connector Specifications:- Orientation Straight Gender Female Mounting Type PCB Mount Mounting Feature Plate Edge Mount Function Other Polarity Standard Body Material Copper Body Plating Gold Plating Impedance 50 ohms Shield Termination NA
