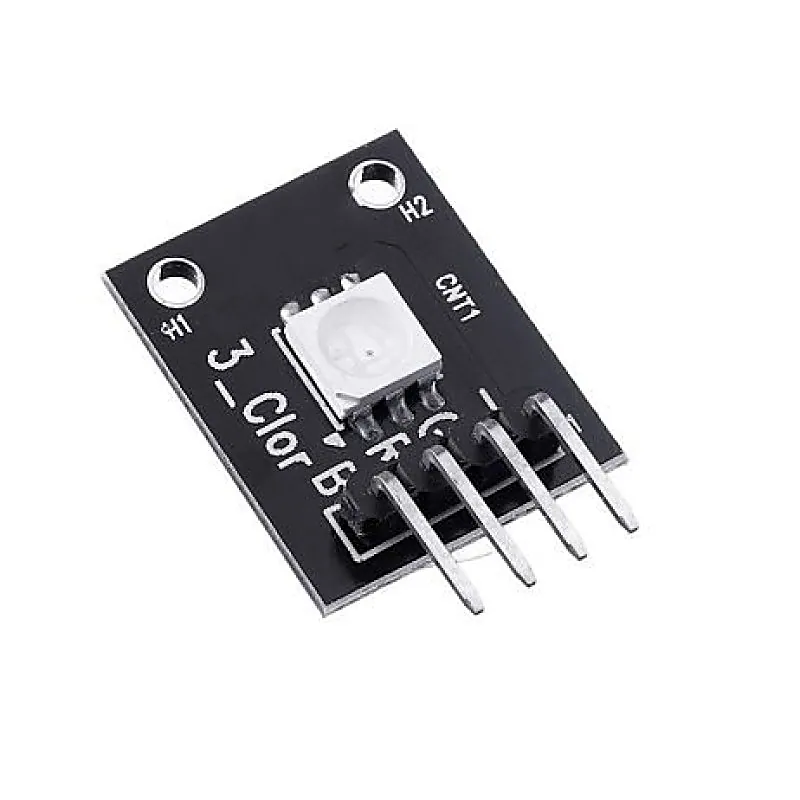

SMD 3 Color LED Module
SMD 3 Color LED Module
SMD RGB LED module consists of a full-color LED made by R, G, B three-pin PWM voltage input can be adjusted. Primary colors (red/blue/green) strength in order to achieve a full-color mixing effect. Control of the module with the Arduino can be achieved Cool lighting effects. The RGB Full Color LED S
+ 18% GST (added at checkout)
In stock — 23 units ready
- RGB trichromatic limiting resistor to prevent burnout
- PWM adjusted color mixing
- Working voltage: 5V
- LED drive mode: Common cathode driver
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
SMD RGB LED module consists of a full-color LED made by R, G, B three-pin PWM voltage input can be adjusted. Primary colors (red/blue/green) strength in order to achieve a full-color mixing effect. Control of the module with the Arduino can be achieved Cool lighting effects. The RGB Full Color LED SMD Module consists of a 5050 SMD LED, use with limiting resistors to prevent burnout. Compatible with popular electronics platforms like Arduino, Raspberry Pi, and ESP8266. Features: RGB trichromatic limiting resistor to prevent burnout PWM adjusted color mixing Working voltage: 5V LED drive mode: Common cathode driver Package Includes: 1 x SMD 3 Color LED Module Specifications :- Operating Voltage(V) 5V max Forward Current(mA) 20 ~ 30 Operating Temperature(C) -25C to 85C Length(mm) 18.5 Width(mm) 15 Height(mm) 7 Weight(g) 1(approx)
