Sound Detection Sensor Module
Sound Detection Sensor Module

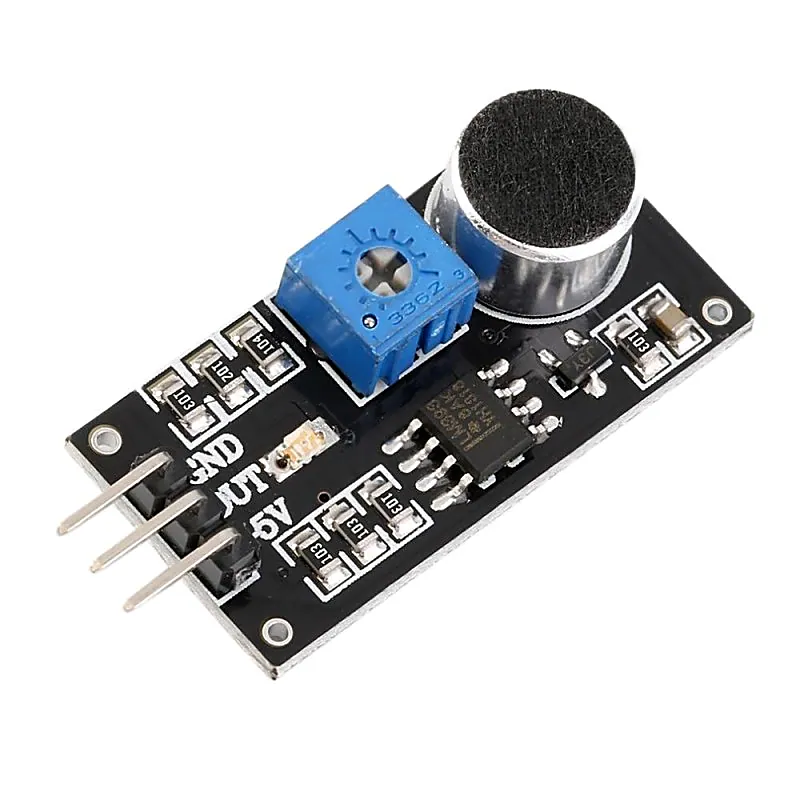

Sound detection sensor module for arduino detects whether sound has exceeded a threshold value. Sound is detected via microphone and fed into an LM393 op amp. The sound level set point is adjusted via an on board potentiometer. When the sound level exceeds the set point, an LED on the module is illu
+ 18% GST (added at checkout)
In stock — 192 units ready
- Operating voltage 3.3V-5V
- Outputs digital switching output (high and low level 0 and 1
- Operating current (Vcc=5V): 4-8mA
- Microphone sensitivity (1Khz): 52-48dB
- Microphone Impedance: 2.2KΩ
- Microphone Frequency: 16-20Khz
- Microphone S/N ratio: 54dB
- Signal output indication
- Single channel signal output
- Outputs low level and the signal light when there is sound
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
Sound detection sensor module for arduino detects whether sound has exceeded a threshold value. Sound is detected via microphone and fed into an LM393 op amp. The sound level set point is adjusted via an on board potentiometer. When the sound level exceeds the set point, an LED on the module is illuminated and the output is sent low. Specification of Sound Sensor Module:- Operating voltage 3.3V-5V Outputs digital switching output (high and low level 0 and 1 Operating current (Vcc=5V): 4-8mA Microphone sensitivity (1Khz): 52-48dB Microphone Impedance: 2.2KΩ Microphone Frequency: 16-20Khz Microphone S/N ratio: 54dB Signal output indication Single channel signal output Outputs low level and the signal light when there is sound
