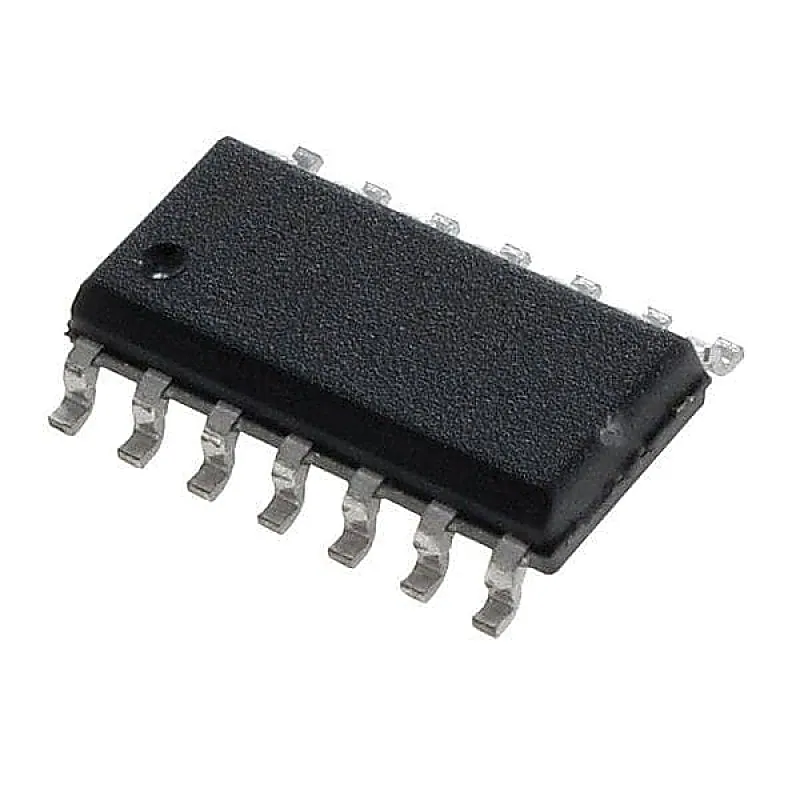

SP491 IC - (SMD Package) - Full Duplex RS-485 Transceiver IC
SP491 IC - (SMD Package) - Full Duplex RS-485 Transceiver IC
The SP491 is identical to the SP490 with the addition of driver and receiver tri-state enable lines.The SP490 is a low power differential line driver/receiver meeting RS-485 and RS-422 standards up to 5Mbps. Both products feature ±200mV receiver input sensitivity, over wide common mode range. The SP
+ 18% GST (added at checkout)
In stock — 118 units ready
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
The SP491 is identical to the SP490 with the addition of driver and receiver tri-state enable lines.The SP490 is a low power differential line driver/receiver meeting RS-485 and RS-422 standards up to 5Mbps. Both products feature ±200mV receiver input sensitivity, over wide common mode range. The SP490 is available in 8-pin plastic DIP and 8-pin NSOIC packages for operation over the commercial and industrial temperature ranges. The SP491 is available in 14-pin DIP and 14-pin NSOIC packages for operation over the commercial and industrial temperature ranges. FEATURES:- • +5V Only • Low Power BiCMOS • Driver/Receiver Enable (SP491) • RS-485 and RS-422 Drivers/Receivers • Pin Compatible with LTC490 and SN75179 (SP490) • Pin Compatible with LTC491 and SN75180 (SP491)
