28BYJ-48 Stepper Motor - 5V Unipolar
28BYJ-48 Stepper Motor - 5V Unipolar

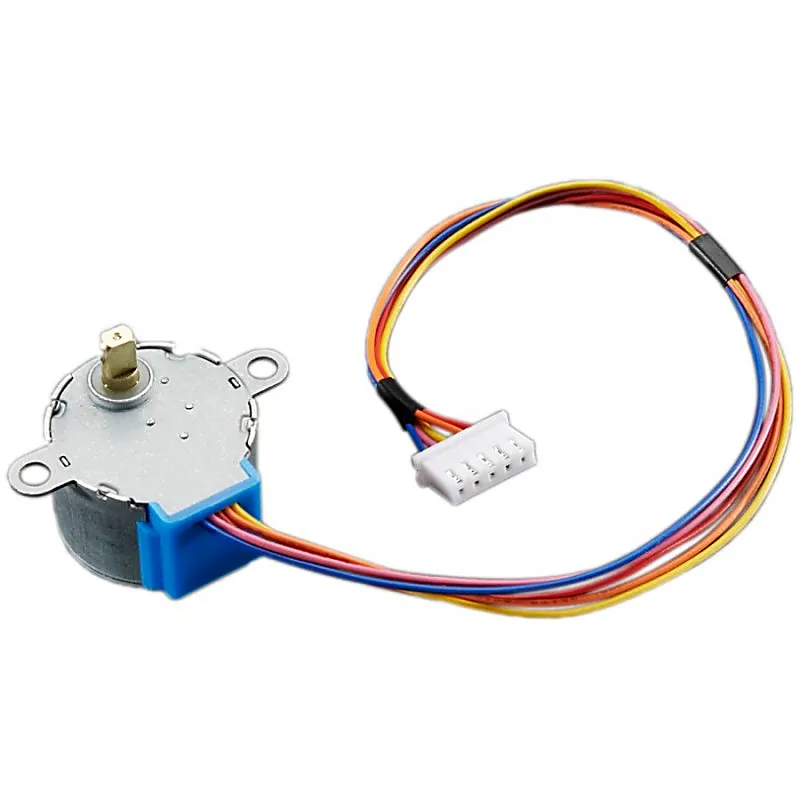

This is a 5V high torque 4 Phase stepper motor with more than 2000 steps per revolution. It has enough torque to move small robots. The motor can be connected with gear shaft and propeller. Specifications:- High quality stepper motor Voltage: DC 5V Diameter: 25mm Step Angle: 5.625 x 1/64 Reduction R
+ 18% GST (added at checkout)
In stock — 5404 units ready
- High quality stepper motor
- Voltage: DC 5V
- Diameter: 25mm
- Step Angle: 5.625 x 1/64
- Reduction Ratio: 1/64
- Rated voltage ： 5VDC
- Number of Phase ： 4
- Speed Variation Ratio ： 1/64
- Stride Angle ： 5.625° /64
- Frequency : 100Hz
- DC resistance ： 50Ω±7%(25℃)
- Idle In-traction Frequency : > 600Hz
- Idle Out-traction Frequency : > 1000Hz
- In-traction Torque >34.3mN.m(120Hz)
- Self-positioning Torque >34.3mN.m
- Friction torque : 600-1200 gf.cm
- Pull in torque : 300 gf.cm
- Insulated resistance >10MΩ(500V)
- Insulated electricity power ：600VAC/1mA/1s
- Insulation grade ：A
- Rise in Temperature <40K(120Hz
- Noise <35dB(120Hz,No load,10cm)
- Model ： 28BYJ-48
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
This is a 5V high torque 4 Phase stepper motor with more than 2000 steps per revolution. It has enough torque to move small robots. The motor can be connected with gear shaft and propeller. Specifications:- High quality stepper motor Voltage: DC 5V Diameter: 25mm Step Angle: 5.625 x 1/64 Reduction Ratio: 1/64 Rated voltage ： 5VDC Number of Phase ： 4 Speed Variation Ratio ： 1/64 Stride Angle ： 5.625° /64 Frequency : 100Hz DC resistance ： 50Ω±7%(25℃) Idle In-traction Frequency : > 600Hz Idle Out-traction Frequency : > 1000Hz In-traction Torque >34.3mN.m(120Hz) Self-positioning Torque >34.3mN.m Friction torque : 600-1200 gf.cm Pull in torque : 300 gf.cm Insulated resistance >10MΩ(500V) Insulated electricity power ：600VAC/1mA/1s Insulation grade ：A Rise in Temperature <40K(120Hz Noise <35dB(120Hz,No load,10cm) Model ： 28BYJ-48
