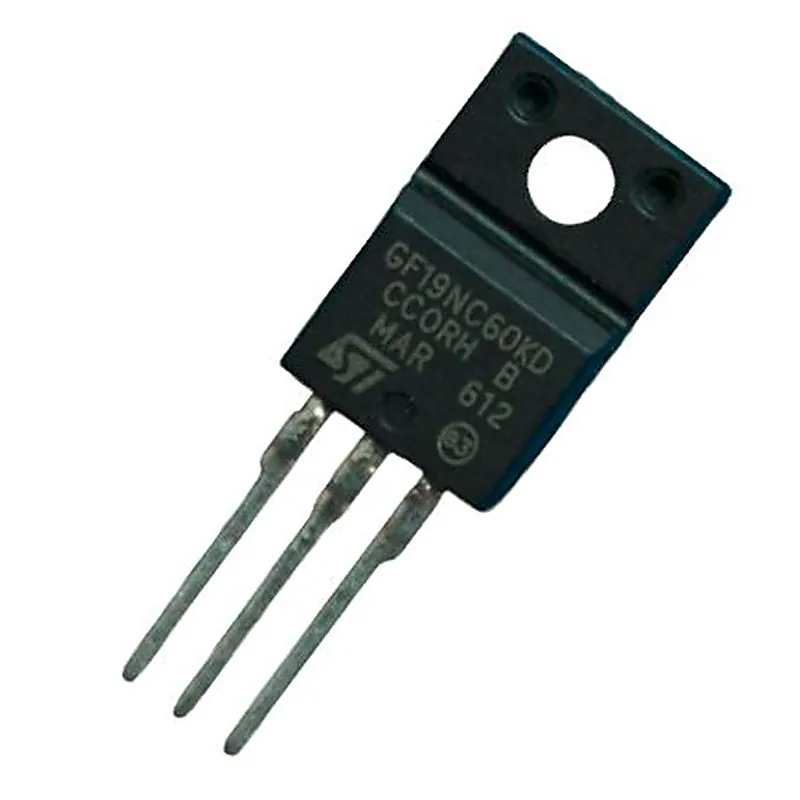

STGF19NC60KD IGBT - 600V 20A Short-Circuit Rugged IGBT
STGF19NC60KD IGBT - 600V 20A Short-Circuit Rugged IGBT
The STGF19NC60KD IGBT devices are very fast IGBTs developed using advanced PowerMESH™ technology. This process guarantees an excellent trade-off between switching performance and low on-state behavior. Features:- • Low on voltage drop (VCE(sat)) • Low CRES / CIES ratio (no cross-conduction susceptib
+ 18% GST (added at checkout)
In stock — 223 units ready
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
The STGF19NC60KD IGBT devices are very fast IGBTs developed using advanced PowerMESH™ technology. This process guarantees an excellent trade-off between switching performance and low on-state behavior. Features:- • Low on voltage drop (VCE(sat)) • Low CRES / CIES ratio (no cross-conduction susceptibility) • Short-circuit withstand time 10 μs • IGBT co-packaged with ultra fast freewheeling diode Applications :- • High frequency inverters • Motor drives Specification:- Symbol Parameter Values Units VCES Collector-to-Emitter Voltage 600 V IC @ TC = 25°C Continuous Collector Current TC = 25 °C 16 A IC @ TC = 100°C Continuous Collector Current TC = 100 °C 10 ICP Pulsed Collector Current 75 VGE Gate-to-Emitter Voltage ± 20 V PTOT Total dissipation at TC = 25 °C 32 W TJ Operating Junction -55 to +150 °C Tstg Storage Temperature Range Related Document:- STGF19NC60KD IGBT Data Sheet
