STMICROELECTRONICS B-L462E-CELL1 IoT Discovery Kit, STM32L462REY6TR, 32bit ARM Cortex-M4 Microcontroller
STMICROELECTRONICS B-L462E-CELL1 IoT Discovery Kit, STM32L462REY6TR, 32bit ARM Cortex-M4 Microcontroller

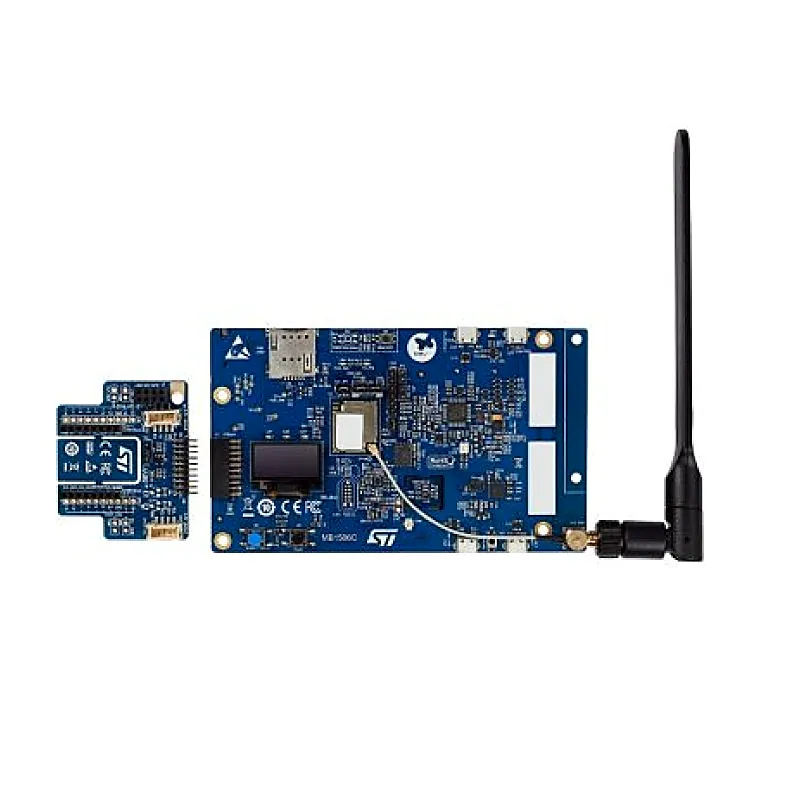

The B-L462E-CELL1 Discovery kit is a turnkey development platform for cellular IoT devices. The Discovery kit contains a low-power Discovery main board powered by an LBAD0ZZ1SE module, a global coverage antenna, and a fan-out board. The LBAD0ZZ1SE module includes an STM32L462REY6TR microcontroller,
+ 18% GST (added at checkout)
In stock — 1 units ready
- For more info refer to datasheet.
- Image may vary from actual product in terms of design, and color.
- low power consumption
- Easy to use
- Compact design
- Best for your DIY IoT projects
- Low-power Audio CODEC with PCM bus and I2C interface
- Ultra-low-power 3D accelerometer and 3D magnetometer (LSM303AGR)
- Capacitive digital sensor for relative humidity and temperature (HTS221)
- Model: STMICROELECTRONICS B-L462E-CELL1 IoT Discovery Kit, STM32L462REY6TR
- Product: IoT Discovery Kit
- EEPROM : I 2 C 16 Kbytes of
- Display: 0.96-inch 128 x 64 OLED screen with SPI interface
- Chip: Arm Cortex -M4 core
- Flash memory: 512 Kbytes of Flash memory and 160 Kbytes of RAM in a WLCSP64 package
- Quad-SPI Flash memory : O nboard 64 Mbytes, exclusive with the 1 MByte of Quad-SPI Flash memory inside the module
- Communications protocols: I 2 C, and UART
- Programmer: On-board ST-LINK/V2-1 debugger/programmer with USB re-enumeration
- Capability: mass storage, Virtual COM port, and debug port
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
The B-L462E-CELL1 Discovery kit is a turnkey development platform for cellular IoT devices. The Discovery kit contains a low-power Discovery main board powered by an LBAD0ZZ1SE module, a global coverage antenna, and a fan-out board. The LBAD0ZZ1SE module includes an STM32L462REY6TR microcontroller, an LBAD0XX1SC-DM ultra-small LTE Cat M/NB modem, and an ST4SIM GSMA-certified embedded SIM. STMod+ and extended pins connectivity provide unlimited expansion capabilities with a large choice of specialized add-on boards. Moreover, the fan-out board supports add-on boards using mikroBUS , ESP 01, Grove I 2 C, Grove UART, and breadboard. The B-L462E-CELL1 Discovery kit includes an ST-LINK debugger/ programmer and comes with the comprehensive STM32Cube software libraries together with packaged software examples to seamlessly connect to cloud servers. Note: For more info refer to datasheet. Image may vary from actual product in terms of design, and color. Features: low power consumption Easy to use Compact design Best for your DIY IoT projects Low-power Audio CODEC with PCM bus and I2C interface Ultra-low-power 3D accelerometer and 3D magnetometer (LSM303AGR) Capacitive digital sensor for relative humidity and temperature (HTS221) Specifications: Model: STMICROELECTRONICS B-L462E-CELL1 IoT Discovery Kit, STM32L462REY6TR Product: IoT Discovery Kit EEPROM : I 2 C 16 Kbytes of Display: 0.96-inch 128 x 64 OLED screen with SPI interface Chip: Arm Cortex -M4 core Flash memory: 512 Kbytes of Flash memory and 160 Kbytes of RAM in a WLCSP64 package Quad-SPI Flash memory : O nboard 64 Mbytes, exclusive with the 1 MByte of Quad-SPI Flash memory inside the module Communications protocols: I 2 C, and UART Programmer: On-board ST-LINK/V2-1 debugger/programmer with USB re-enumeration Capability: mass storage, Virtual COM port, and debug port Packages Includes: 1 x STMICROELECTRONICS B-L462E-CELL1 IoT Discovery Kit, STM32L462REY6TR, 32bit ARM Cortex-M4 Microcontroller Attachments : Download
