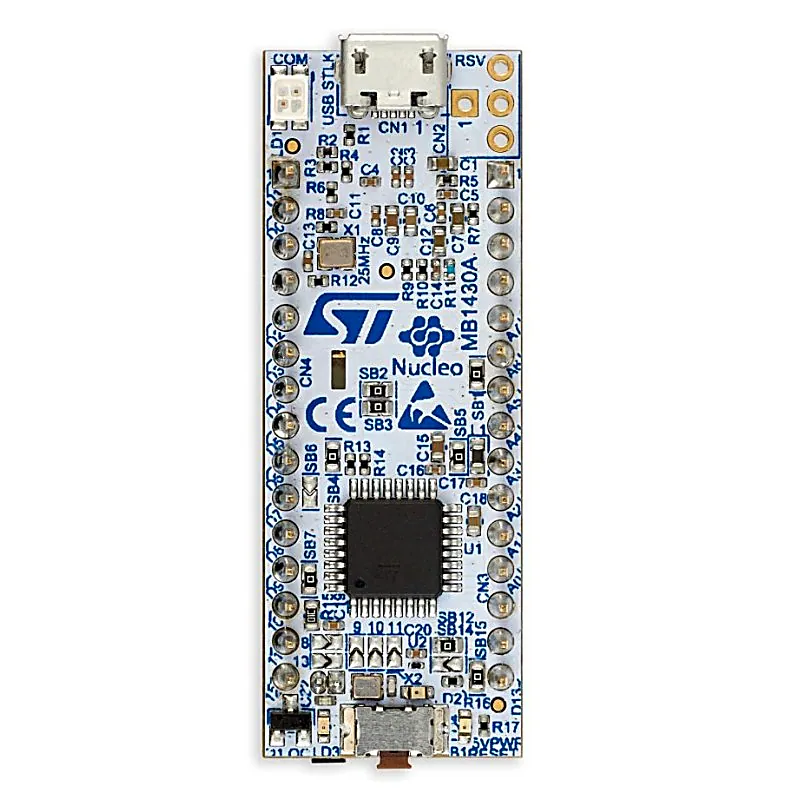

STMICROELECTRONICS NUCLEO-G431KB Development Board, Nucleo-G431KB, STM32G431KBT6U MCU, Arduino Nano V3

The STMICROELECTRONICS NUCLEO-G431KB Development Board provides an affordable and flexible way for users to try out new concepts and build prototypes by choosing from the various combinations of performance and power consumption features, provided by the STM32 microcontroller.The Arduino Nano V3 connectivity support allows the easy expansion of the functionality of the STM32 NUCLEO-G431KB open development platform with a wide choice of specialized shields. The STMICROELECTRONICS NUCLEO-G431KB Development Board does not require any separate probe as it integrates the ST-LINK debugger/programmer.The NUCLEO-G431KB t Board comes with the STM32 NUCLEO-G431KB comprehensive free software libraries and examples available with the STM32Cube MCU Package. Note: Actual product may vary in terms of colour. Features: Microcontroller: STM32 in a 30-pin package User Interface: 1 user LED, 1 reset push-button Board Connectors:Arduino Nano V3 expansion connector,Micro-AB USB connector for ST-LINK Power Supply:ST-LINK, USB VBUS, or external sources Debugger/Programmer: Integrated ST-LINK with USB re-enumeration (mass storage, Virtual COM port, debug port) Software: Comprehensive libraries and examples with STM32Cube MCU Package IDE Support: Compatible with IAR, Keil, and GCC-based IDEs Board-Specific:24 MHz crystal oscillator,Arm Mbed Enabled compliant Specifications: Model: NUCLEO-G431KB Connectivity: Supports Arduino Nano V3 shields Development: Ideal for prototyping and concept testing with STM32 microcontrollers. Package include: 1 x STMICROELECTRONICS NUCLEO-G431KB Development Board Attachments : Download
