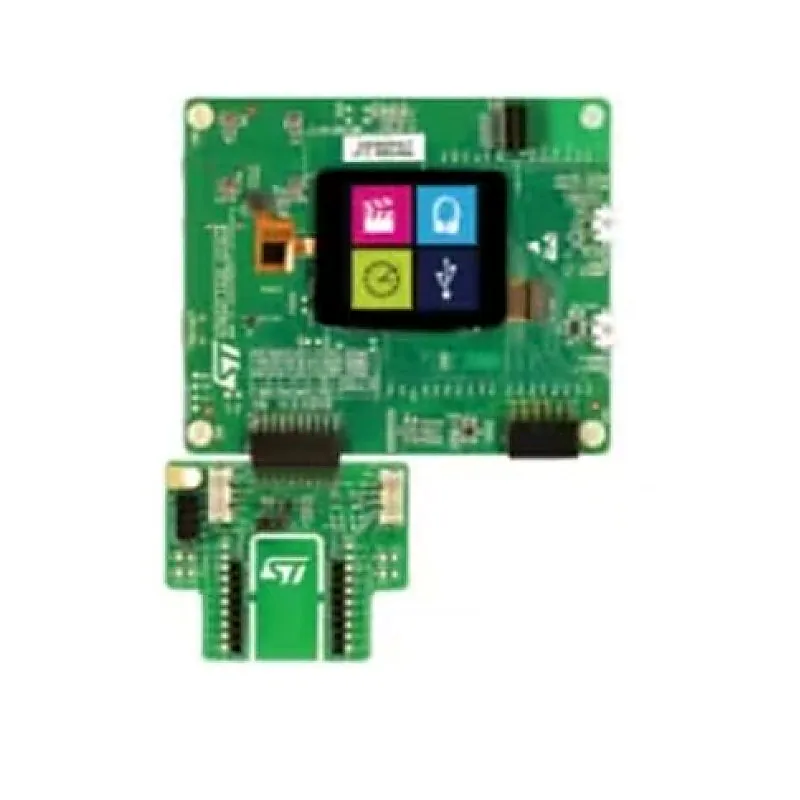

STMICROELECTRONICS STM32F723E-DISCO Development Board, STM32F723IE MCU, On-Board ST-LINK/V2-1, STMod+ and ArduinoUno V3 Connectivity

With the STMICROELECTRONICS STM32F723E-DISCO Development Board users develop applications easily on the STM32F7 Series high-performance microcontrollers based on Arm Cortex M7 core. The Discovery kit combines the STMICROELECTRONICSSTM32F723E-DISCO Development Board features with 240240 pixel LCD with touch panel, SAI audio codec, MEMS microphones, USBs OTG HS and OTG FS, Quad-SPI NOR Flash memory, and microSD card connector. An embedded ST-LINK/V2-1 debugger/programmer is included. Specialized add-on boards can be connected through the ARDUINO Uno V3, Pmod, or STMod+ expansion connectors. Features: Microcontroller: STM32F723IEK6 (Arm Cortex-M7, 512 Kbytes Flash, 176+16 Kbytes SRAM, BGA176 package) Display: 240240 pixel TFT LCD with capacitive touch panel Audio: SAI audio codec and four digital MEMS microphones Storage: 512-Mbit Quad-SPI NOR Flash, 8-Mbit PSRAM, microSD card connector USB Connectivity: USB OTG HS and OTG FS, two user USB Micro-AB connectors Expansion: ARDUINO Uno V3, Pmod, STMod+ connectors Power Supply: Flexible options via ST-LINK USB VBUS, user USB connectors, or external sources Debugging: On-board ST-LINK/V2-1 with USB re-enumeration Software Support: STM32Cube MCU Package libraries; compatible with IAR Embedded Workbench, MDK-ARM, STM32CubeIDE Specifications: Microcontroller: STM32F723IEK6 Flash Memory: 512 Kbytes SRAM: 176 Kbytes + 16 Kbytes Display Resolution: 240240 pixels Audio Inputs/Outputs: Stereo input/output, speaker output Power Supply: 3.3V or 5.0V output for external applications User Interface: User and reset push-buttons Debugging Port: Mass storage, Virtual COM port Additional Connectors: ESP-01 Wi-Fi, headers for direct breadboard plug-in Package include : 1 x STMICROELECTRONICS STM32F723E-DISCO Development Board
