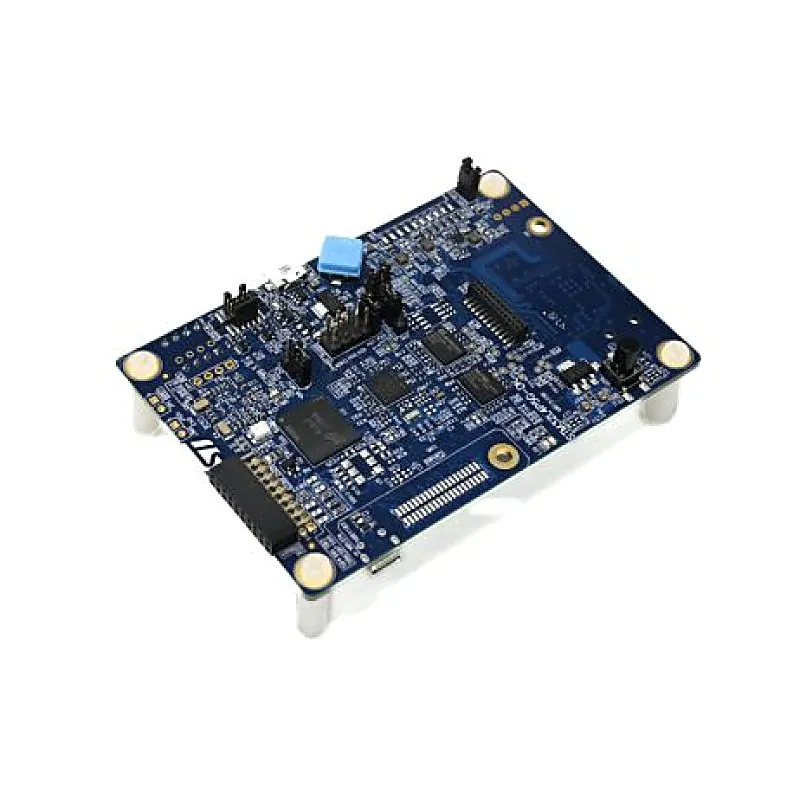

STMICROELECTRONICS STM32L4P5G-DK Discovery Kit, STM32L4P5AGI6PU, 32bit, ARM Cortex-M4

The STM32L4P5G-DK Discovery kit is a complete demonstration and development platform for the STMicroelectronics Arm Cortex-M4 core-based STM32L4P5AGI6P microcontroller with four I2C buses, three SPI and six USART ports, CAN port, two SAI ports, 12-bit ADC, 12-bit DAC, internal 320-Kbyte SRAM and 1-Mbyte flash memory, two OctoSPI memory interfaces, touch-sensing capability, USB OTG FS port, TFT LCD controller, flexible memory controller (FMC), 8- to 14-bit DCMI interface, and JTAG debugging support. The STM32L4P5G-DK Discovery kit is used as a reference design for user application development before porting to the final product.STLINK-V3E is integrated into the board, as an embedded in-circuit debugger and programmer for the STM32 MCU and the USB Virtual COM port bridge. The full range of hardware features on the board helps the user evaluate all the peripherals (USB OTG FS, OctoSPI flash memory and PSRAM memory device, eMMC, and others) and to develop applications. The ARDUINO Uno V3 and STMod+ connectors provide easy connection to extension shields or daughterboards for specific applications. Features: Microcontroller: STM32L4P5AGI6P (Arm Cortex-M4), 1 Mbyte Flash, 320 Kbytes SRAM Connectivity: 4 I2C, 3 SPI, 6 USART, 1 CAN, USB OTG FS Peripherals: 12-bit ADC/DAC, 240240 color LCD, 4-Gbyte eMMC, 512-Mbit Octo-SPI Flash, 64-Mbit PSRAM User Interface: 2 LEDs, reset button, 4-direction joystick Expansion: ARDUINO Uno V3, STMod+ connectors Power Supply: ST-LINK USB VBUS, USB OTG, external sources Debugger: On-board STLINK-V3E Software: STM32CubeL4 libraries and IDE support (IAR, MDK-ARM, STM32CubeIDE) Specifications: Microcontroller: STM32L4P5AGI6P (Arm Cortex-M4) Flash Memory: 1 Mbyte SRAM: 320 Kbytes Package: UFBGA169 Display: 240240 pixel LCD (RGB interface) Connectivity:4 I2C buses,3 SPI ports,6 USART ports,USB OTG FS Audio: SAI codec, MEMS microphone (footprint only) User Interface:2 user LEDs,Reset button,4-direction joystick with selection button Power Supply: ST-LINK USB, USB OTG, external sources (3.3 V) Debugger/Programmer: Integrated STLINK-V3E Software Support: STM32CubeL4 libraries, compatible with IAR Embedded Workbench, MDK-ARM, STM32CubeIDE Package include: 1 x STMICROELECTRONICS STM32L4P5G-DK Discovery Kit, STM32L4P5AGI6PU, 32bit, ARM Cortex-M4 Attachments : Download
