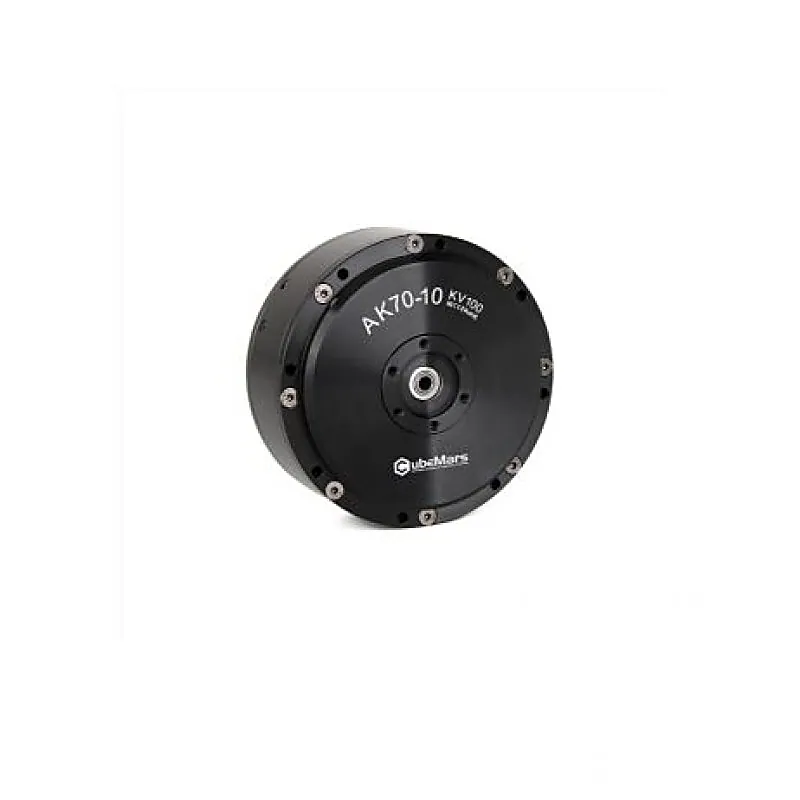

T Motor AK70-10 KV100 Brushless Robot Motor(Without Driver)
T Motor AK70-10 KV100 Brushless Robot Motor(Without Driver)
The T-Motor Brushless Motor AK70-10 is a highly integrated and high-torque module. The module weighs only 521 g, thin as 50.2 mm combined with efficiency and dynamic. This motor combines with a planetary gear solution and uses a 10:1 reduction ratio. Features: Offers highly integrated and high torqu
+ 18% GST (added at checkout)
In stock — 3 units ready
- Offers highly integrated and high torque module
- Reducer and controller in one
- Applied to an exoskeleton, quadruped robotic dog
- Easy configuration with RUBIK Link
- Interface: 12Bit encoder and UART/CAN
- Ke(V/rpm): 0.01
- Km(Nmh/w): 0.19
- Kt(Nm/A) 0.095
- Kv(RPM/V): 100
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
The T-Motor Brushless Motor AK70-10 is a highly integrated and high-torque module. The module weighs only 521 g, thin as 50.2 mm combined with efficiency and dynamic. This motor combines with a planetary gear solution and uses a 10:1 reduction ratio. Features: Offers highly integrated and high torque module Reducer and controller in one Applied to an exoskeleton, quadruped robotic dog Easy configuration with RUBIK Link Interface: 12Bit encoder and UART/CAN Ke(V/rpm): 0.01 Km(Nmh/w): 0.19 Kt(Nm/A) 0.095 Kv(RPM/V): 100 Package Includes: 1 x T Motor AK70-10 KV100 Brushless Robot Motor (Without Driver)
