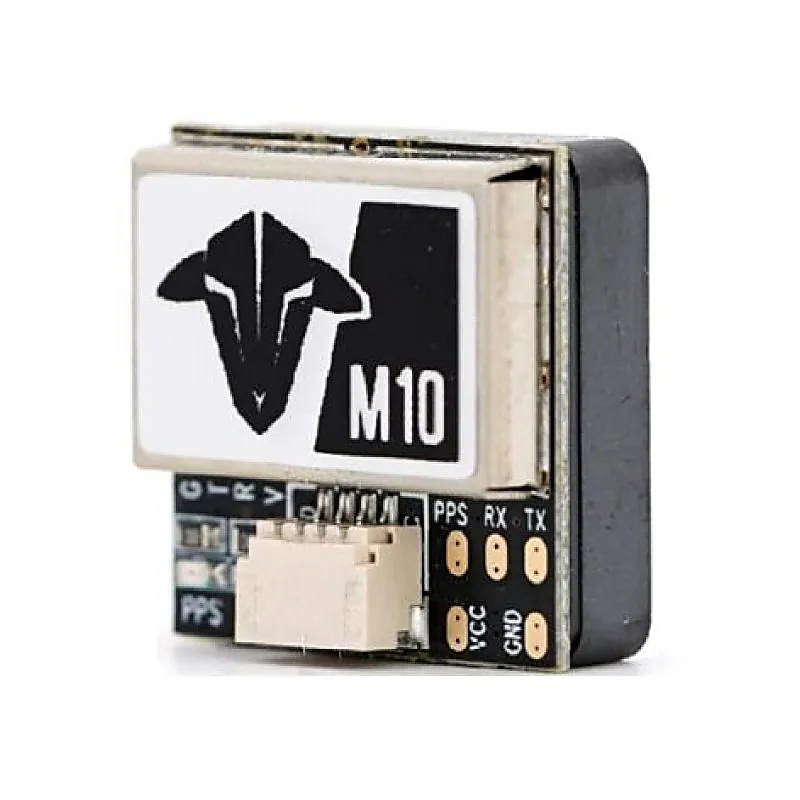

TBS M10 GPS GLONASS
TBS M10 GPS GLONASS
M10 GPS from TBS. Small in size, with a quick lock, great performance, and sensitivity. Precise GPS positioning for Betaflight, iNav, and more. Features: ublox UBX-M10050 Flash memory for saving configuration. Chipset ublox UBX-M10050 Frequency L1, 1575.42MHz ; L2,1561.10MHZL3,1602.00MHZ Baud Rate 4
+ 18% GST (added at checkout)
In stock — 3 units ready
- ublox UBX-M10050
- Flash memory for saving configuration.
- Chipset ublox UBX-M10050
- Frequency L1, 1575.42MHz ; L2,1561.10MHZL3,1602.00MHZ
- Baud Rate 4800bps-921600bps, default 38400bps
- Sensitivity (Tracking: -166dBm) | (Capture: -160dBm) | (Cold Start 148dBm)
- Cold start Average 26 seconds
- Warm start Average 24 seconds
- Hot start Average 1 second
- Accuracy (HorizontalPosition: Autonomous<2m average) | (SBAS < 2.0m average) | (Timepulse signal: RMS 30 ns)
- Maximum height 50000m
- Maximum speed 500 m/s
- Maximum acceleration 4G
- Refresh Rate 0.25Hz-18Hz, default 1Hz
- Size 18 x 18 x 6.1 mm
- Weight 4.9g
- Input Voltage 5V
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
M10 GPS from TBS. Small in size, with a quick lock, great performance, and sensitivity. Precise GPS positioning for Betaflight, iNav, and more. Features: ublox UBX-M10050 Flash memory for saving configuration. Chipset ublox UBX-M10050 Frequency L1, 1575.42MHz ; L2,1561.10MHZL3,1602.00MHZ Baud Rate 4800bps-921600bps, default 38400bps Sensitivity (Tracking: -166dBm) | (Capture: -160dBm) | (Cold Start 148dBm) Cold start Average 26 seconds Warm start Average 24 seconds Hot start Average 1 second Accuracy (HorizontalPosition: Autonomous Maximum height 50000m Maximum speed 500 m/s Maximum acceleration 4G Refresh Rate 0.25Hz-18Hz, default 1Hz Size 18 x 18 x 6.1 mm Weight 4.9g Input Voltage 5V Package Includes: 1 x TBS M10 GPS GLONASS
