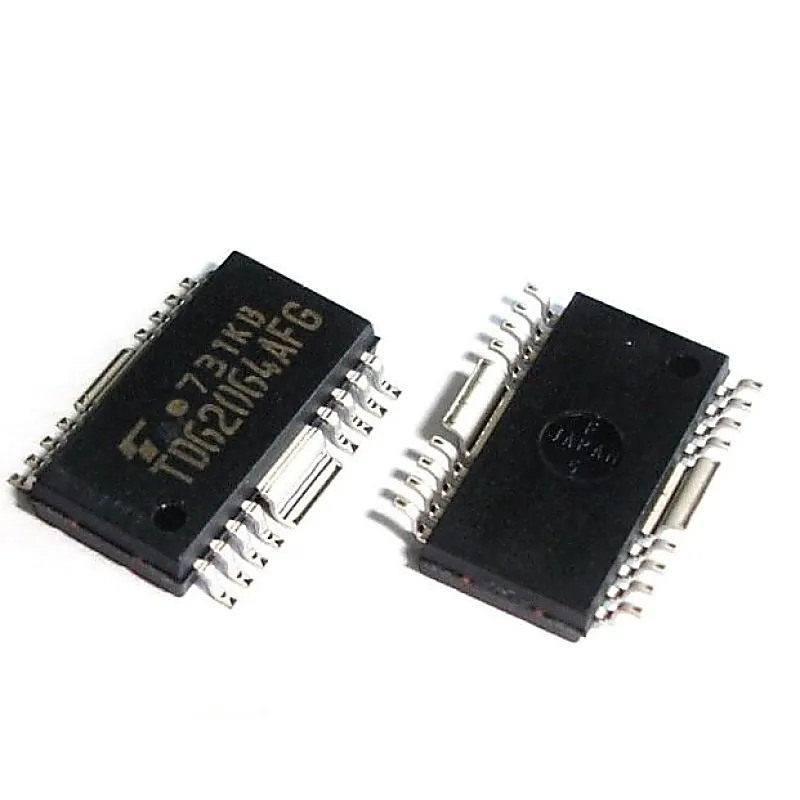

TD62064AFG IC - (SMD Package) - 4-Channel High-Current Darlington Sink Driver IC
TD62064AFG IC - (SMD Package) - 4-Channel High-Current Darlington Sink Driver IC
The TD62064AFG are high-voltage, high-current darlington drivers comprised of four NPN darlington pairs. All units feature integral clamp diodes for switching inductive loads. Applications include relay, hammer, lamp and stepping motor drivers. Features:- • Output current (single output) 1.5 A (max)
+ 18% GST (added at checkout)
In stock — 74 units ready
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
The TD62064AFG are high-voltage, high-current darlington drivers comprised of four NPN darlington pairs. All units feature integral clamp diodes for switching inductive loads. Applications include relay, hammer, lamp and stepping motor drivers. Features:- • Output current (single output) 1.5 A (max) • High sustaining voltage output 50 V (min) • Output clamp diodes • Input compatible with TTL and 5 V CMOS • GND terminal = Heat sink • Package type-AFG: HSOP-16 pin
