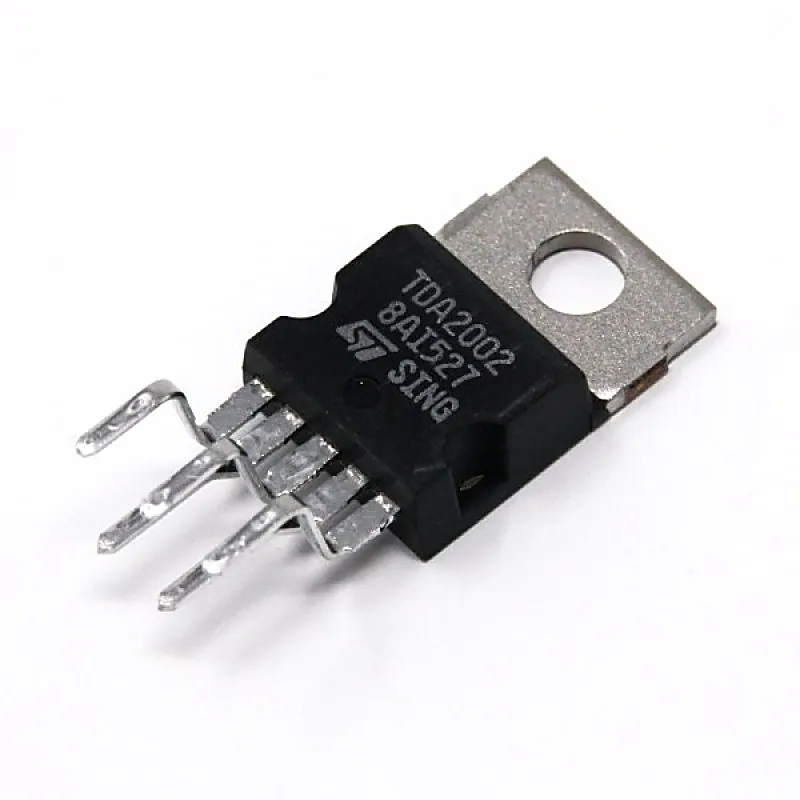

TDA2002 8W Hi-Fi Audio Power Amplifier IC TO-220-5 Package

The TDA2002 is a class-B audio power amplifier in a Pentawatt package designed for driving low impedance loads (down to 1.6 ohm). This device provides a high output current capability (up to 3.5A) and has very low harmonic and crossover distortion. The device incorporates a short-circuit protection system comprising an arrangement for automatically limiting the dissipated power so as to keep the operating point of the output transistors within their safe operating range. A conventional thermal shutdown system is also included. Features:- ■ High output current ■ Very low harmonic and crossover distortion ■ Short-circuit protection ■ Thermal shutdown ■ High Reliability Specifications:- Symbol Parameter Value Unit VS Peak Supply Voltage 40 V VS DC Supply Voltage 28 V VS Operational Supply Voltage 18 V IO Peak Output Current (Internally Limited) 3.5 A PTOT Total power dissipation at T case = 90 °C 15 W TSTG, TJ Storage and junction temperature – 40 to + 150 °C Related Document:- TDA2002 IC Datasheet
