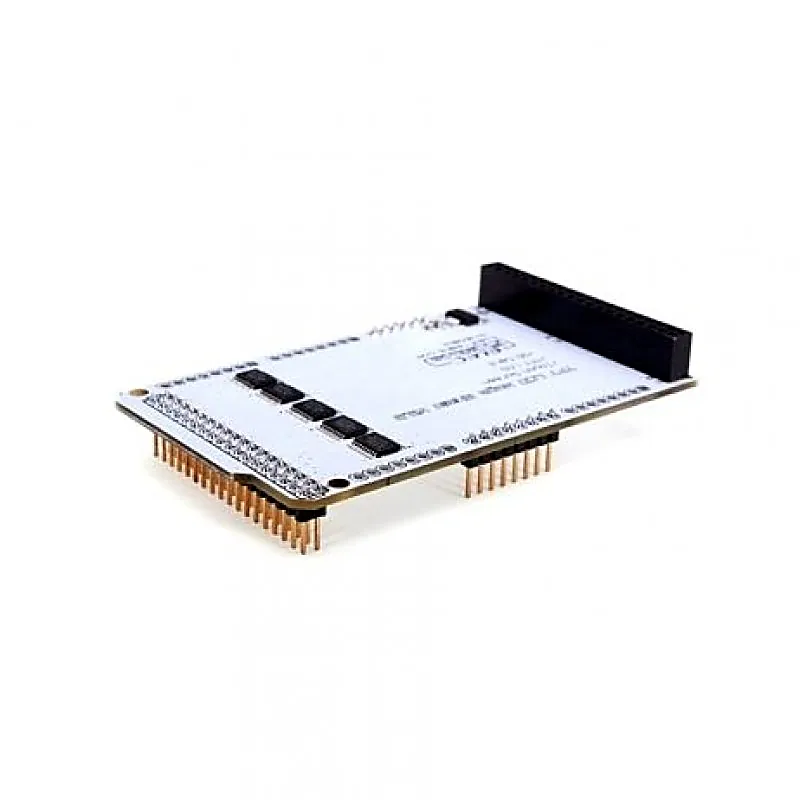

TFT LCD Expansion Shield V2.2 for Arduino MEGA

Using this TFT LCD Mega Expansion Shield V2.2 for Arduino MEGA the users can now directly plug the LCD shields from 3.2 to 5 on to the Arduino Mega board. This shield support 16-bit mode. Arduino Mega board have enough pins for one to use SD card and Touch function at the same time. The shield Support: TFT 3.2 4.3 5.0 7.0 TFT01 LCD is work in 3.3V so that it can not be used directly on top of Arduino motherboard, in order to make the TFT01 LCD compatible use with Arduino board. Designed this section TFT Shield, it can be directly plugged into Arduino board Using the TFT01 LCD module. The TFT01 LCD is now supported 16-bit mode, it will not exist encounter like in 328S, only using a set of SD card interface or touch screen interface for Arduino Mega2560. Features and Specification: Operating Voltage: 3.3V Fully compatible with Arduino MEGA Support 2.4 and 3.2 TFT display module Support both 8 bit and 16-bit mode Support both SD card and touch function simultaneously Package Included 1 x TFT LCD Mega Shield V2.2 Additional information Operating Voltage (VDC) 3.3 Length (mm) 90 Width (mm) 53 Height (mm) 13 Weight (gm) 12
