Thermal Sensor Relay Module
Thermal Sensor Relay Module

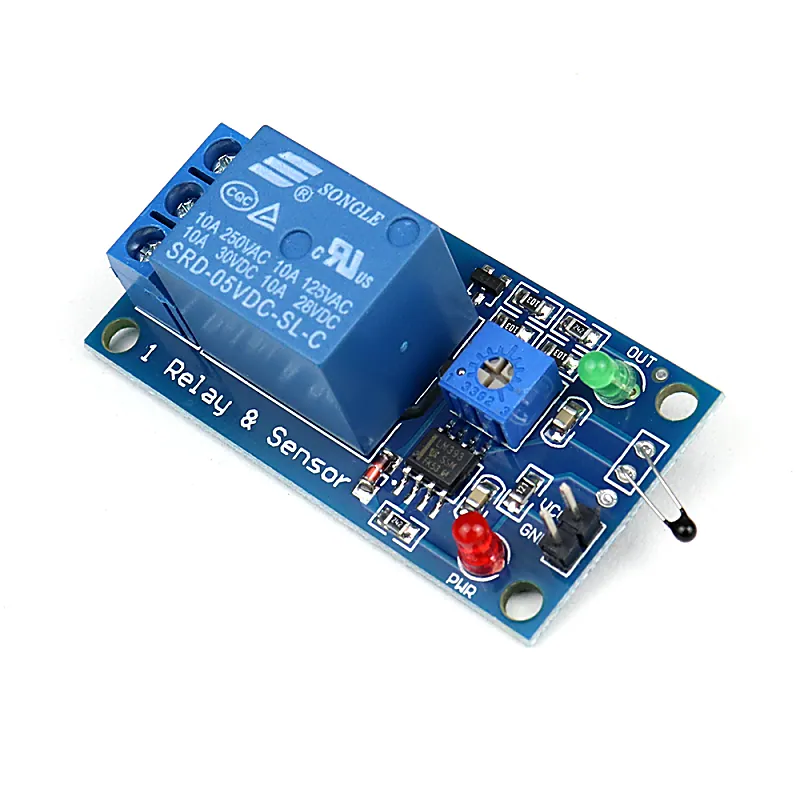

This is a Thermal Sensor Relay Module. It uses a temperature detection via potentiometer adjustment to a valve to control the corresponding temperature with relay output, directly connected to the AC high-power products. Package Includes: 1 x Thermal Sensor Relay Module. Specifications :- Operating
+ 18% GST (added at checkout)
In stock — 11 units ready
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
This is a Thermal Sensor Relay Module. It uses a temperature detection via potentiometer adjustment to a valve to control the corresponding temperature with relay output, directly connected to the AC high-power products. Package Includes: 1 x Thermal Sensor Relay Module. Specifications :- Operating Voltage (VDC) 3.3 ~ 5 Maximum Voltage(V) 5V DC Maximum Operating Current (A) 0.15 Trigger Voltage (VDC) 5 Switching Voltage (VAC) 250@10A Switching Voltage (VDC) 30@10A Operating Temperature (C) -40 to 100 Opt. Relative Humidity(RH) 20% 85% Storage condition () -40 to 125 Length (mm) 50 Width (mm) 26 Height (mm) 17 Weight (gm) 16
