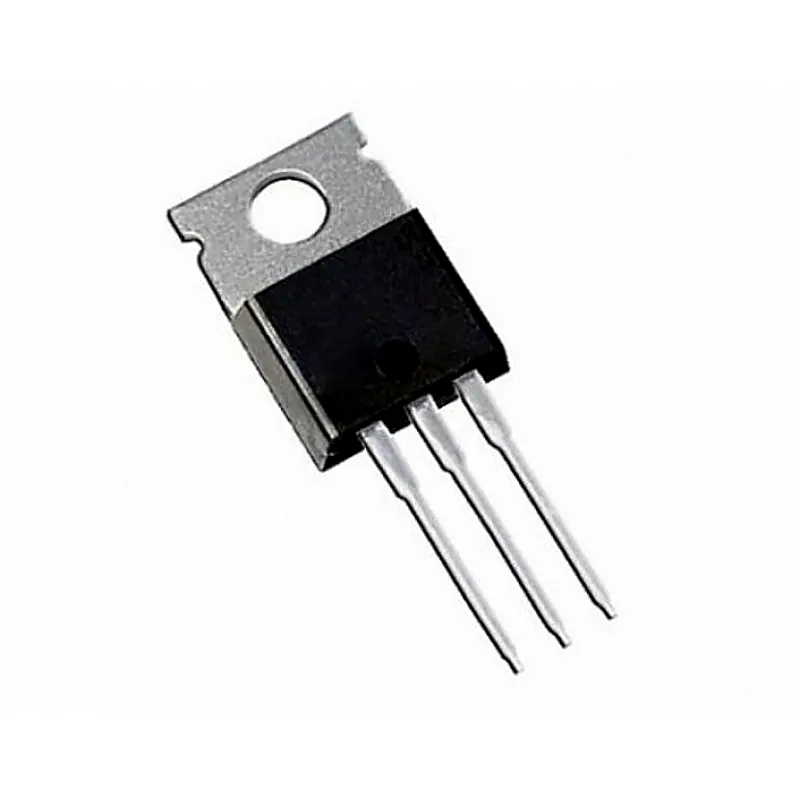

TIP127 PNP Power Darlington Transistor 100V 5A TO-220 Package
TIP127 PNP Power Darlington Transistor 100V 5A TO-220 Package
TIP127 is a three layer PNP device within the working range, the collector current IC is a function of the base current IB, a change in the base current giving a corresponding amplified change in the collector current for a given collector emitter voltage VCE. Features:- • Low saturation voltage • S
+ 18% GST (added at checkout)
In stock — 2592 units ready
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
TIP127 is a three layer PNP device within the working range, the collector current IC is a function of the base current IB, a change in the base current giving a corresponding amplified change in the collector current for a given collector emitter voltage VCE. Features:- • Low saturation voltage • Simple drive requirements • High safe operating area • For low distortion complementary designs • Easy to carry and handle Detailed Specifications:- Transistor Polarity PNP Collector−Emitter Voltage (VCEO) 100V Collector−Base Voltage (VCBO) 100V Continuous Collector Current (Ic) 5A Continuous Base Current (Ib) 0.12A Emitter Base Voltage (VEBO) 5V Power Dissipation (Pd) 65W Operating Temperature Range -65 - 150°C DC Current Gain (hFE) 1000 Related Documents:- TIP127 Transistor Datasheet
