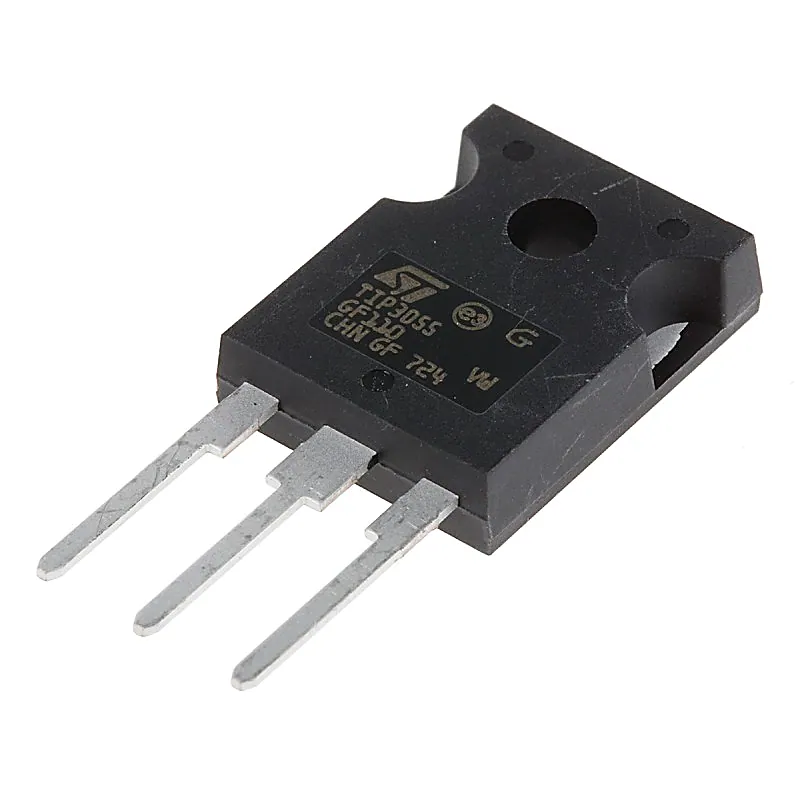

TIP3055 NPN Power Transistor 60V 15A TO-247 Package
TIP3055 NPN Power Transistor 60V 15A TO-247 Package
TIP3055 is a three layer NPN device within the working range, the collector current IC is a function of the base current IB, a change in the base current giving a corresponding amplified change in the collector current for a given collector emitter voltage VCE. Features:- • Low saturation voltage •
+ 18% GST (added at checkout)
In stock — 4985 units ready
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
TIP3055 is a three layer NPN device within the working range, the collector current IC is a function of the base current IB, a change in the base current giving a corresponding amplified change in the collector current for a given collector emitter voltage VCE. Features:- • Low saturation voltage • Simple drive requirements • High safe operating area • For low distortion complementary designs • Easy to carry and handle Detailed Specifications:- Transistor Polarity NPN Collector−Emitter Voltage (VCEO) 60V Collector−Base Voltage (VCBO) 7V Continuous Collector Current (Ic) 15A Continuous Base Current (Ib) 7A Emitter Base Voltage (VEBO) 1.8V Power Dissipation (Pd) 90W Operating Temperature Range -65 - 150°C DC Current Gain (hFE) 20-70 Related Documents:- TIP3055 Transistor Datasheet
