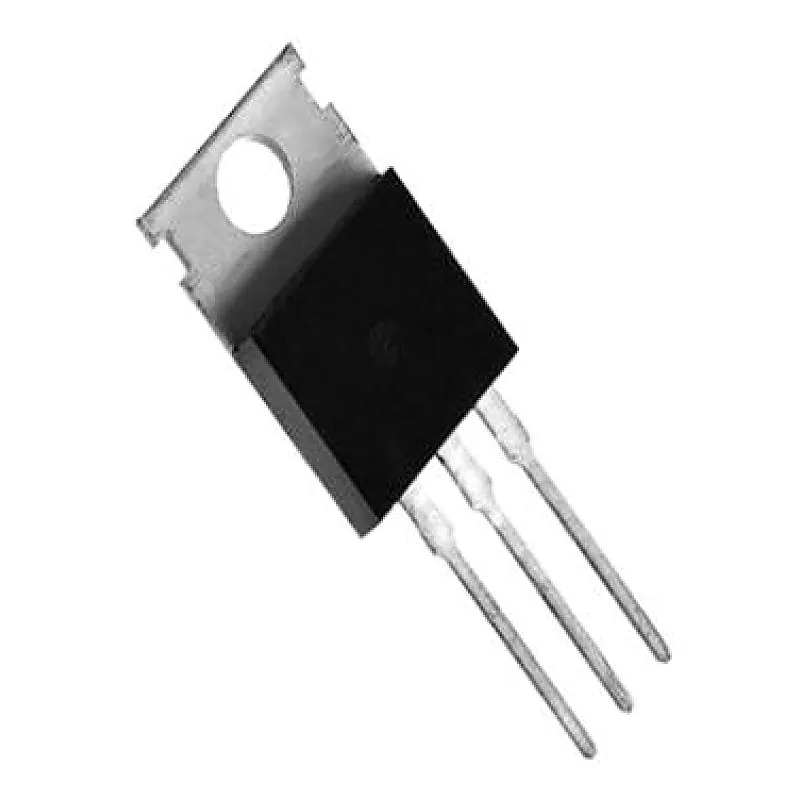

TIP31C NPN Bipolar Power Transistor 100V 3A TO-220 Package
TIP31C NPN Bipolar Power Transistor 100V 3A TO-220 Package
TIP31C is a three layer NPN device within the working range, the collector current IC is a function of the base current IB, a change in the base current giving a corresponding amplified change in the collector current for a given collector emitter voltage VCE. Features:- • Low saturation voltage • S
+ 18% GST (added at checkout)
In stock — 638 units ready
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
TIP31C is a three layer NPN device within the working range, the collector current IC is a function of the base current IB, a change in the base current giving a corresponding amplified change in the collector current for a given collector emitter voltage VCE. Features:- • Low saturation voltage • Simple drive requirements • High safe operating area • For low distortion complementary designs • Easy to carry and handle Detailed Specifications:- Transistor Polarity NPN Collector−Emitter Voltage (VCEO) 40VDC Collector−Base Voltage (VCBO) 40VDC Continuous Collector Current (Ic) 3ADC Continuous Base Current (Ib) 1ADC Emitter Base Voltage (VEBO) 5VDC Power Dissipation (Pd) 40W Operating Temperature Range -65 - 150°C DC Current Gain (hFE) 10-50 Related Documents:- TIP31C Transistor Datasheet
