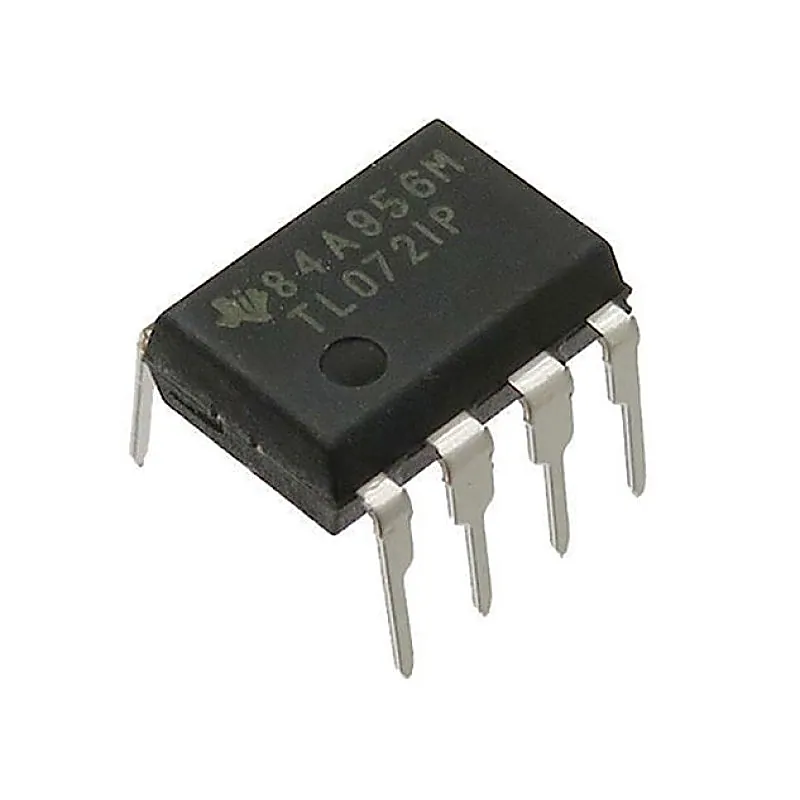

TL072 Low Noise Dual JFET Op-Amp IC DIP-8 Package

The TL072 JFET-input operational amplifiers incorporate well-matched, high-voltage JFET and bipolar transistors in a monolithic integrated circuit. The devices feature high slew rates, low-input bias and offset currents, and low offset-voltage temperature coefficient. The low harmonic distortion and low noise make the TL072 series ideally suited for high-fidelity and audio pre-amplifier applications. Features:- • Low Power Consumption • Wide Common-Mode and Differential Voltage Ranges • Low Input Bias and Offset Currents • Output Short-Circuit Protection • Low Total Harmonic Distortion: 0.003% (Typical) • Low Noise Vn = 18 nV/√Hz (Typical) at f = 1 kHz • High-Input Impedance: JFET Input Stage • Internal Frequency Compensation • Latch-Up-Free Operation • High Slew Rate: 13 V/μs (Typical) • Common-Mode Input Voltage Range Includes VCC+ Specification:- Parameter Specification Number of channels (#) 2 Total supply voltage (Max) (+5V=5, +/-5V=10) 30 Total supply voltage (Min) (+5V=5, +/-5V=10) 7 Rail-to-rail In to V+ GBW (Typ) (MHz) 3 Slew rate (Typ) (V/us) 13 Vos (offset voltage @ 25 C) (Max) (mV) 6 Iq per channel (Typ) (mA) 1.4 Vn at 1 kHz (Typ) (nV/rtHz) 18 Rating See Data Sheet Operating temperature range © -40 to 85, 0 to 70 Offset drift (Typ) (uV/C) 18 Input bias current (Max) (pA) 200 CMRR (Typ) (dB) 100 Output current (Typ) (mA) 10 Related Document:- TL072 IC Datasheet
