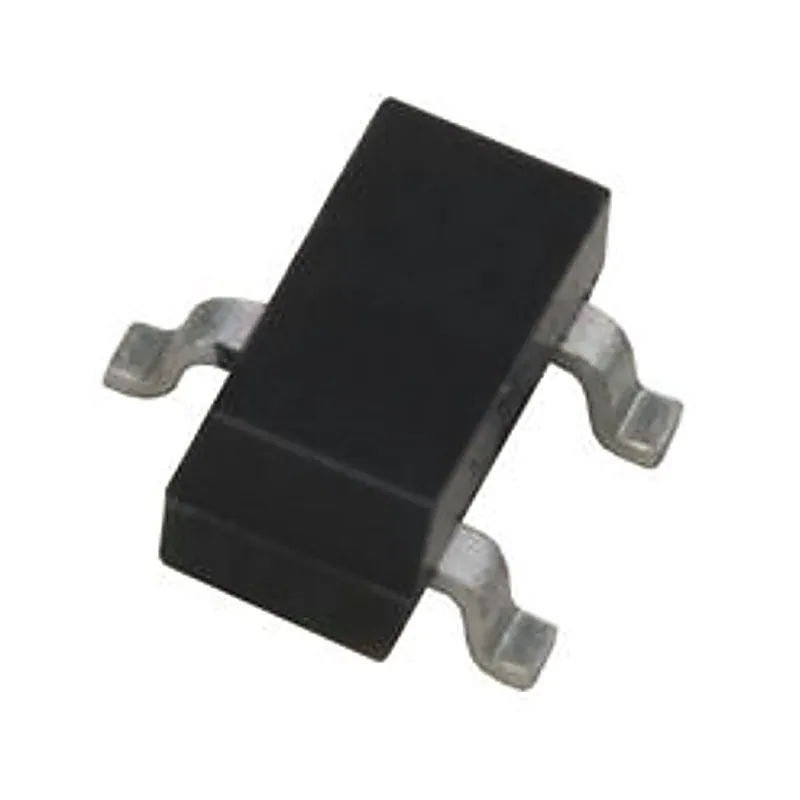

TL431 - (SMD SOT-23 Package) - Adjustable Precision Shunt Regulator
TL431 - (SMD SOT-23 Package) - Adjustable Precision Shunt Regulator
The TL431 is three terminal adjustable shunt regulator offering excellent temperature stability and output current handling capability up to 100mA. The output voltage may be set to any chosen voltage between 2.5 and 36 volts by selection of two external divider resistors. The devices can be used as
+ 18% GST (added at checkout)
In stock — 6213 units ready
- Temperature range -40 to +125ºC
- Reference Voltage Tolerance at 25°C: 2.495V ± 1.0%
- Low Output Noise
- 0.2Ω Typical Output Impedance
- Sink Current Capability: 1mA to 100mA
- Adjustable Output Voltage: VREF to 36V
- Power Dissipation: 330mW
- Opto-Coupler Linearisers
- Shunt Regulators
- Improved Zener
- Variable Reference
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
The TL431 is three terminal adjustable shunt regulator offering excellent temperature stability and output current handling capability up to 100mA. The output voltage may be set to any chosen voltage between 2.5 and 36 volts by selection of two external divider resistors. The devices can be used as a replacement for zener diodes in many applications requiring an improvement in zener performance. Specifications:- Temperature range -40 to +125ºC Reference Voltage Tolerance at 25°C: 2.495V ± 1.0% Low Output Noise 0.2Ω Typical Output Impedance Sink Current Capability: 1mA to 100mA Adjustable Output Voltage: VREF to 36V Power Dissipation: 330mW Applications:- Opto-Coupler Linearisers Shunt Regulators Improved Zener Variable Reference
