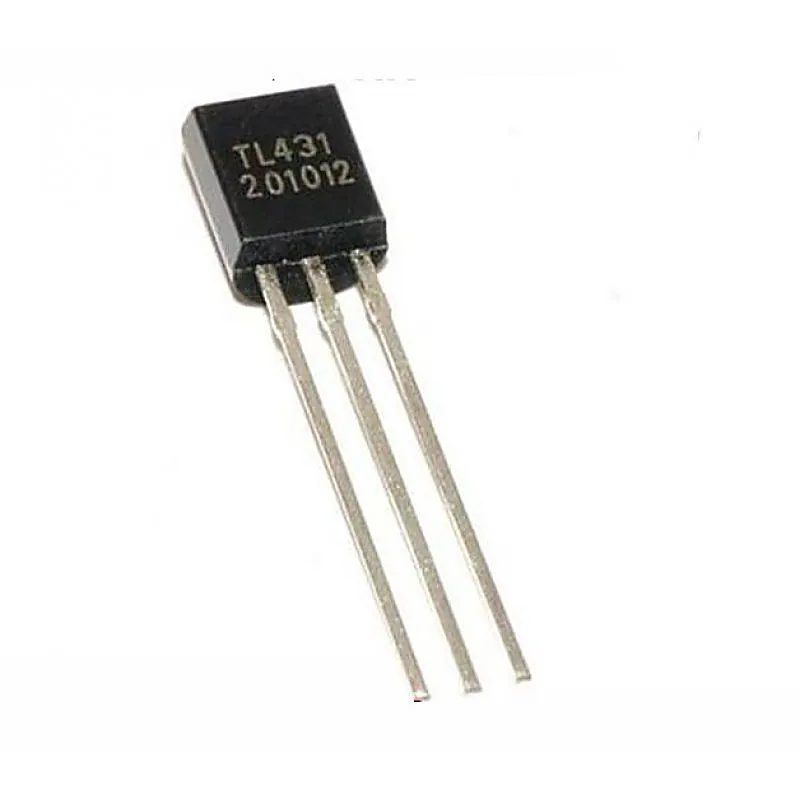

TL431 Adjustable Precision Shunt Regulator TO-92 Package
TL431 Adjustable Precision Shunt Regulator TO-92 Package
TL431 is three-terminal adjustable regulator series with a guaranteed thermal stability over applicable temperature ranges. The output voltage may be set to any value between VREF (approximately 2.5 volts) and 36 volts with two external resistors. These devices have a typical dynamic output impedanc
+ 18% GST (added at checkout)
In stock — 3314 units ready
- Programmable Output Voltage to 36 Volts
- Low Dynamic Output Impedance 0.2Ω Typical
- Sink Current Capability of 1.0 to 100mA
- Equivalent Full-Range Temperature Coefficient of 50ppm/°C Typical
- Temperature Compensated For Operation Over Full Rated Operating Temperature Range
- Low Output Noise Voltage
- Fast Turn-on Response
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
TL431 is three-terminal adjustable regulator series with a guaranteed thermal stability over applicable temperature ranges. The output voltage may be set to any value between VREF (approximately 2.5 volts) and 36 volts with two external resistors. These devices have a typical dynamic output impedance of 0.2Ω. Active output circuitry provides a very sharp turn-on characteristic, making these devices excel lent replacement for zener diodes in many applications. Features:- Programmable Output Voltage to 36 Volts Low Dynamic Output Impedance 0.2Ω Typical Sink Current Capability of 1.0 to 100mA Equivalent Full-Range Temperature Coefficient of 50ppm/°C Typical Temperature Compensated For Operation Over Full Rated Operating Temperature Range Low Output Noise Voltage Fast Turn-on Response Related Documents:- TL431 Regulator Datasheet
