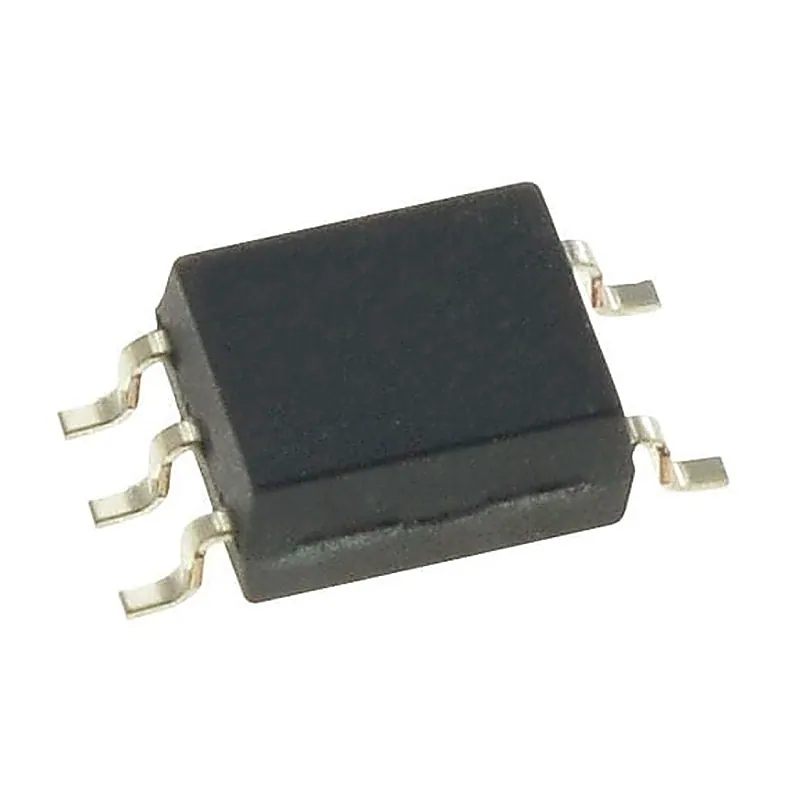

TLP131 - (SMD SOP-5 Package) - Toshiba Phototransistor Output Optocoupler IC

The TLP131 is a small outline coupler, suitable for surface mount assembly. TLP131 consists of a photo transistor, optically coupled to a gallium arsenide infrared emitting diode. Features:- • Collector−emitter voltage: 80V (min.) • Current transfer ratio: 50% (min.) Rank GB: 100% (min.) • Isolation voltage: 3750Vrms (min.) • UL recognized: UL1577, file No. E67349 TLP131 base terminal is for the improvement of speed, reduction of dark current, and enable operation Specification:- Symbol Parameter Rating Units IF Forward Current 50 mA ΔIF / °C Forward current derating −0.7 mA / °C IFP Pulse forward current 1 A VR Reverse voltage 5 V Tj Junction temperature 125 °C VCEO Collector-emitter voltage 80 V VECO Emitter-collector voltage 7 V IC Collector current 50 mA PC Collector power dissipation 150 mW ΔPC/°C Collector power dissipation derating (Ta ≥ 25°C) -1.5 mW / °C Tj Junction temperature 125 °C Tstg Storage temperature range −55~125 °C Topr Operating temperature range −55~100 °C Tsol Lead soldering temperature 260 °C PT Total package power dissipation 200 mW ΔPT / °C Total package power dissipation derating (Ta ≥ 25°C) -2 mW / °C BVs Isolation voltage 3750 Vrms Related Document:- TLP131 SMD Data Sheet
