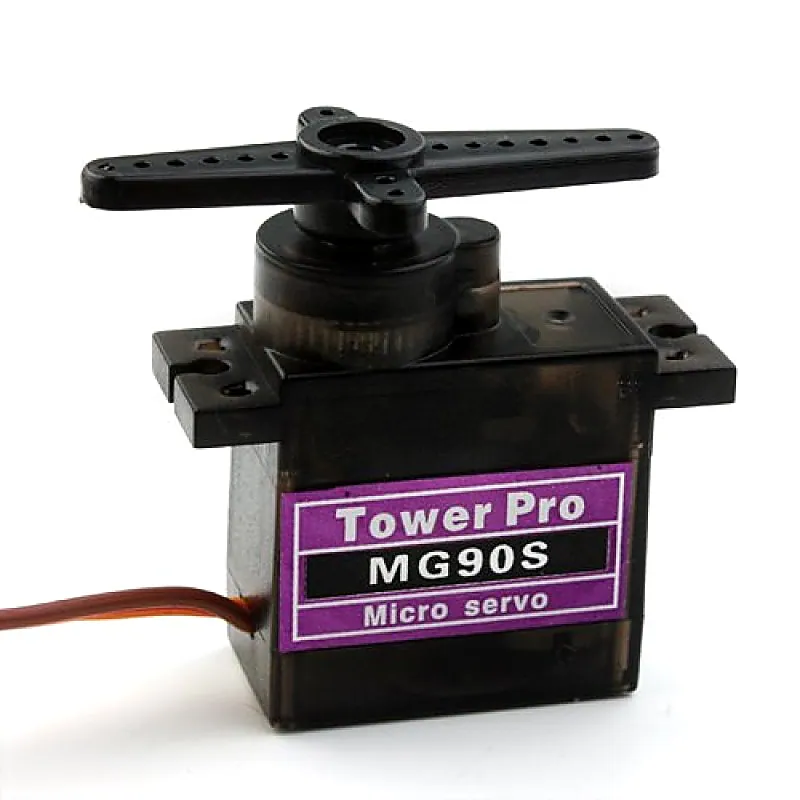

Tower Pro MG90S Metal Gear Servo Motor (360 Degree Rotation)

The Tower pro MG90S Micro Digital Servo is 360 rotation servo. It is a Digital Servo Motor which receives and processes PWM signal faster and better. It equips sophisticated internal circuitry that provides good torque, holding power, and faster updates in response to external forces. The good optimized performance and reliability of our servos have made them the favorite choice of many RC hobbyists. They are packed within a tight sturdy plastic case which makes them water and dust resistant which is a very useful feature in RC planes, Boats, and RC Monster Trucks etc. It equips 3-wire JR servo plug which is compatible with Futaba connectors too. Wire Description:- RED Positive Brown Negative Orange Signal Features : High resolution Accurate positioning Fast control response Constant torque throughout the servo travel range Excellent holding power Package Includes : 1 x Tower Pro MG90S Metal Gear Servo Motor (360 Degree Rotation) Set of Horns One Point Two Point Four Point 1 x Set of Screws Specifications : Model MG90S Diameter of rotor (mm) 4.8 Weight(gm) 13 Operating Voltage (VDC) 4.8 ~ 6.6 Operating Speed @4.8V 0.10sec/60 Operating Speed @6.6V 0.08sec/60 Stall Torque @ 4.8V (Kg-Cm) 1.8 Stall Torque @6.6V (Kg-Cm) 2.2 Operating Temperature (C) 0 to 55 Dead Band Width ( s) 1 Rotational Degree 360 Servo Plug JR Cable Length (cm) 25 Length (mm) 12.4 Width (mm) 22.8 Height (mm) 32.5
