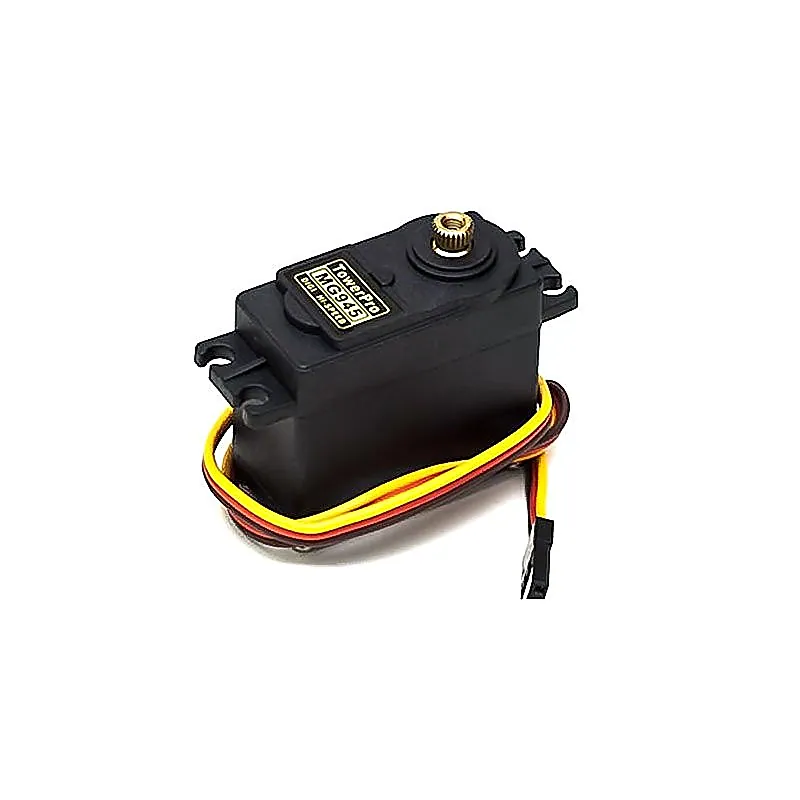

Tower Pro MG945 Digital High Speed Servo Motor

It is a low cost and high quality digital servo with export quality and great servo for just about any application. MG945 is for 1/8 buggy monster and many RC model. Please refer to product configure table provided in the attachments. Wire Description:- RED Positive Brown Negative Orange Signal Features: Gear Type: Metal gear Power Supply: Through External Adapter Servo wire length: 32cm Servo Plug: JR (Fits JR and Futaba) Stall Torque(Kg-Cm): 10kg/cm (4.8v); 12kg/cm (6v) CE & RoHS approved Servo gear set and shaft have been upgraded to aluminum 6061-T6,which is stronger and lighter than copper. Universal S type connector, fits most receivers, including Futaba, JR, Hitec ,GWS, Cirrus, Blue Bird, Blue Arrow, Corona, Berg, Spektrum. Package Includes: 1 x Tower Pro MG945 Digital High Speed Servo Motor and Accessories Parts (as shown in the image) Specifications : Operating Voltage (VDC) 4.8~ 6.6 Temperature range 0- 55 Stall Torque @ 4.8V (Kg-Cm) 10 Stall Torque @6.6V (Kg-Cm) 12 Operating Speed @4.8V 0.23sec/60 Operating Speed @6.6V 0.2sec/60 Degree of rotation 180 Dead band width 1uS Gear Type Metal Length (mm) 40.7 Width (mm) 19.7 Height (mm) 42.9 Weight (gm) 66
