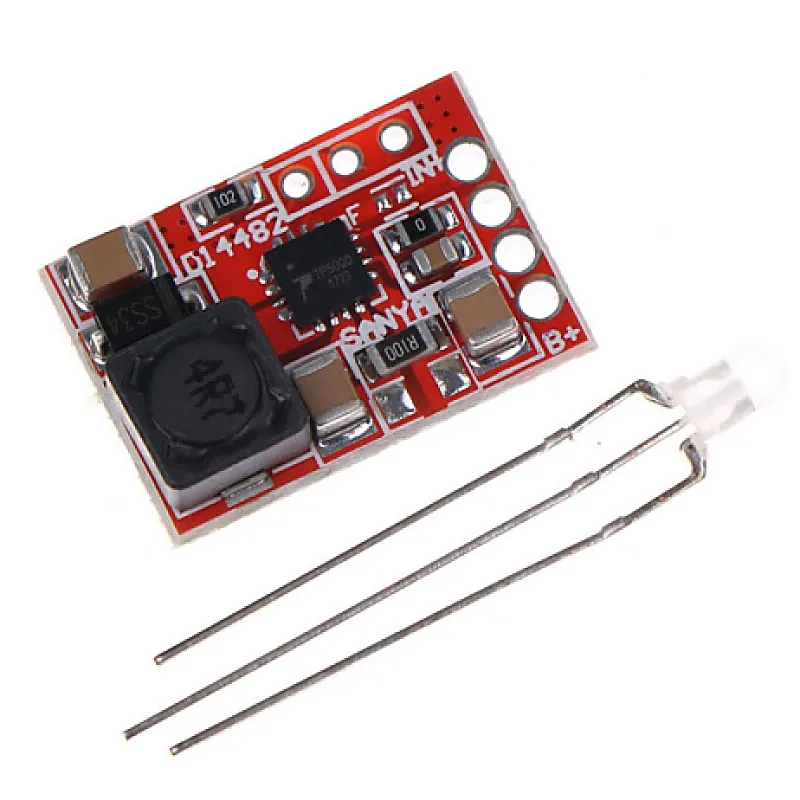

TP5000 3.6V/4.2V 1A LithiumBattery Charger Module

This is a Charging Module for the Lithium Battery based on the TP5000 Battery Charging IC. This module can charge a lithium battery with an current of up to 1A. This module has advance features like battery temperature protection, reverse battery shutdown, and short circuit protection. The charging module comes with a dual colour led ,which is used to denote the charging and full status of the battery. The module also serves as an battery protection board, with built-in automatic recharge function it will automatically charge the battery when it gets fully discharged. Applications: Portable Equipment MP3,Mp4 Players Electric Tools LED Drivers. Features: Single Battery Charger Module Programable Charge Curren Form 0.1A to 2A Programable Precharge Current Form 10% to 100% LED Specifications: Operating Voltage (VDC) 4.2~9 Operating Temperature(°C) -40 to 85 Charging method Linear Length (mm) 22 Width (mm) 15 Height (mm) 5 Weight (gm) 2
