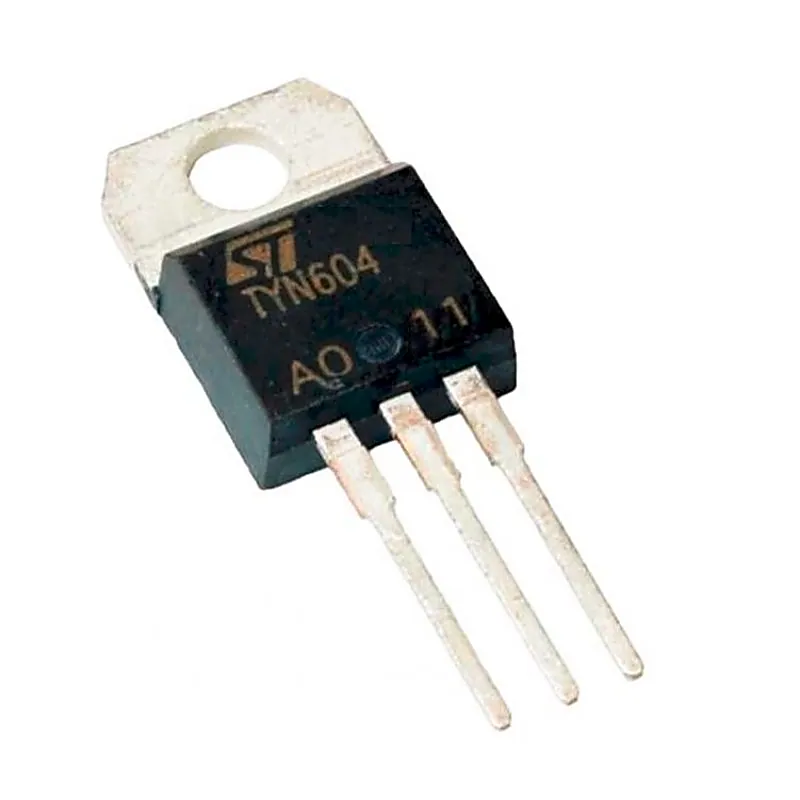

TYN604 - 600V - 4A SCR - Thyristor
TYN604 - 600V - 4A SCR - Thyristor
The TYN604 is controlled rectifiers uses a high performance glass passivated technology. This general purpose Family of silicon controlled rectifiers is designed for power supplies up to 400Hz on resisitive or inductive load. Features:- High Surge capability High On-state current High Stability and
+ 18% GST (added at checkout)
In stock — 28 units ready
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
The TYN604 is controlled rectifiers uses a high performance glass passivated technology. This general purpose Family of silicon controlled rectifiers is designed for power supplies up to 400Hz on resisitive or inductive load. Features:- High Surge capability High On-state current High Stability and reliability Specifications:- Symbol Parameter Ratings Units IT(AV) Average on-state current 2.5 A IT(RMS) Effective on-state current 4 A ITSM Non-Repetitive Peak On-state Current 63 A Tj Operating junction temperature range -40 to 125 °C Tstg Storage Temperature -40 to 150 °C I2t I2t Value for fusing 18 A2S VRRM Tj = 125 °C 600 V VDRM Repetitive peak off-state voltage 600 V Tl Maximum lead temperature for soldering during 10 s at 4.5 mm from case 260 °C Related Document:- TYN604 SCR Data Sheet
