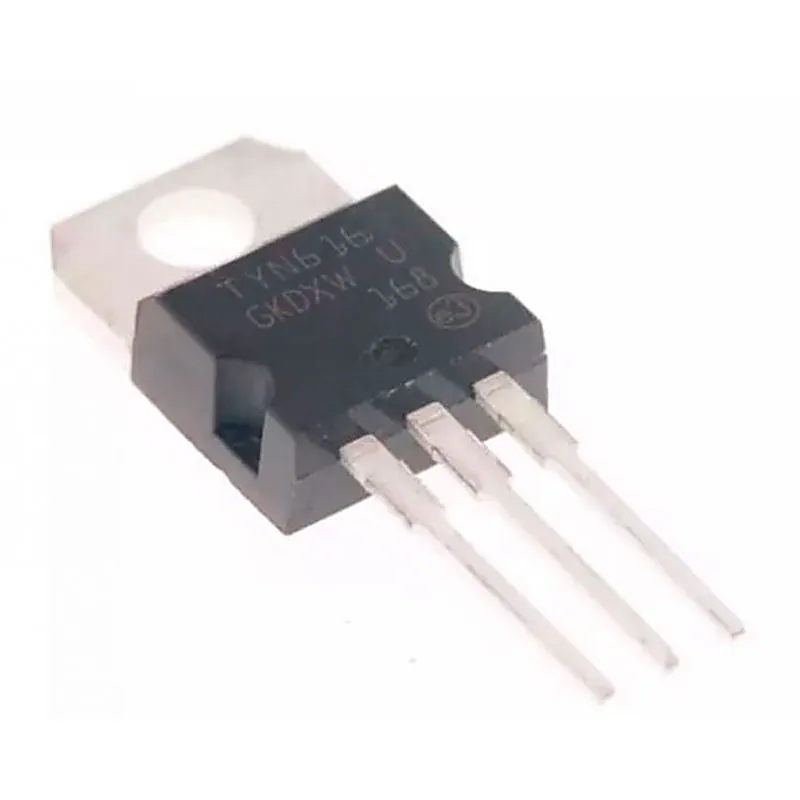

TYN616 - 600V - 16A SCR - Thyristor
TYN616 - 600V - 16A SCR - Thyristor
The standard TYN61616 A SCRs series is suitable for general purpose applications. Using clip assembly technology, they provide a superior performance in surge current capabilities. Features:- • IT(RMS) =16 A • VDRM/VRRM = 600 to 1000 V • IGT = 25 mA Specifications:- Symbol Parameter Ratings Units IT
+ 18% GST (added at checkout)
In stock — 1233 units ready
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
The standard TYN61616 A SCRs series is suitable for general purpose applications. Using clip assembly technology, they provide a superior performance in surge current capabilities. Features:- • IT(RMS) =16 A • VDRM/VRRM = 600 to 1000 V • IGT = 25 mA Specifications:- Symbol Parameter Ratings Units IT(AV) Average on-state current 10 A IT(RMS) Effective on-state current 16 A ITSM Non-Repetitive Peak On-state Current 200 A Tj Operating junction temperature range -40 to 125 °C Tstg Storage Temperature -40 to 150 °C I2t I2t Value for fusing 180 A2S VRGM Maximum peak reverse gate voltage 5 V IGM Peak gate current A A Related Document:- TYN616 SCR Data Sheet
