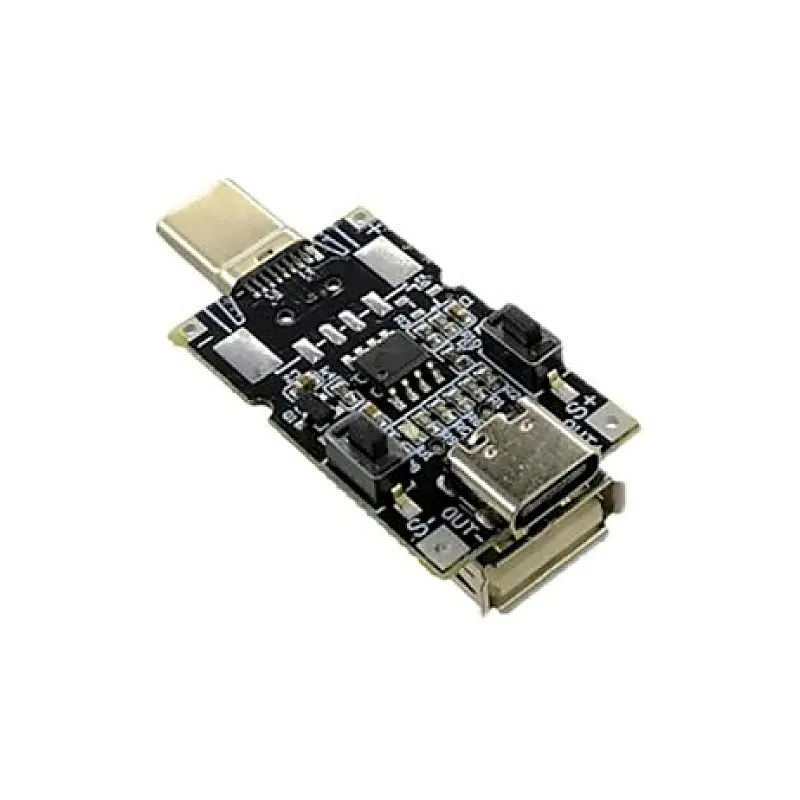

Type-C Input QC2.0/3.0 Decoy Module Boost Trigger Motherboard 9V 12V 20V Adjustable Power Supply

This is Type-C Input QC2.0/3.0 Decoy Module Boost Trigger Motherboard 9V 12V 20V Adjustable Power Supply. Its a module used in electronic setups to manage power supplies, particularly in devices that require specific voltage and power delivery. Instructions for use (need to use PD protocol power supply): Hold the S button and insert the module into the power supply, then reset it to 5V output (>> means power on). Press and hold the S button, then insert the module into the power source. At this time, switch whether the key lock is on or not, and save the state after power-on.If the key lock is unlocked. To prevent accidental operation, the lock must be unlocked to adjust the voltage after power on. Once powered on, press and hold the button. Once the button is locked, press the button to unlock it. After powering on, press and hold the button, then press the button to lock the button. Quick Start: Connect the board to PD power. At this time, the LED light will indicate the currently set decoy voltage. If not turned on, it will default to 5v. Adjust the output voltage. The board is locked by default and must be unlocked first. This method involves holding down the s button and then pressing the s button. At this point the unlock is complete and you can release the button. Click the [s button] to increase the voltage, or the [s button] to decrease the voltage. Note: The actual product may vary in slight variation in color and components with the image shown depending upon quantity availability. Features: Type-C Input QC2.0/3.0 Decoy Module Boost Trigger Motherboard Adjustable Power Supply Power Supply Management Good Compatibility Specifications: Product name: PD2.0/3.0 decoy Input voltage: DC 5V Output voltage: 5V>9V>12V>15V>20V Maximum output voltage: 20v Maximum output current: 5A Working temperature: -25 ~ 85 Working humidity: 5% ~ 95% RH Product dimensions (mm): 44 x 20 x 12.5 Product weight (g): 5g Package Includes: 1 x Type-C Input QC2.0/3.0 Decoy Module Boost Trigger Motherboard 9V 12V 20V Adjustable Power Supply
