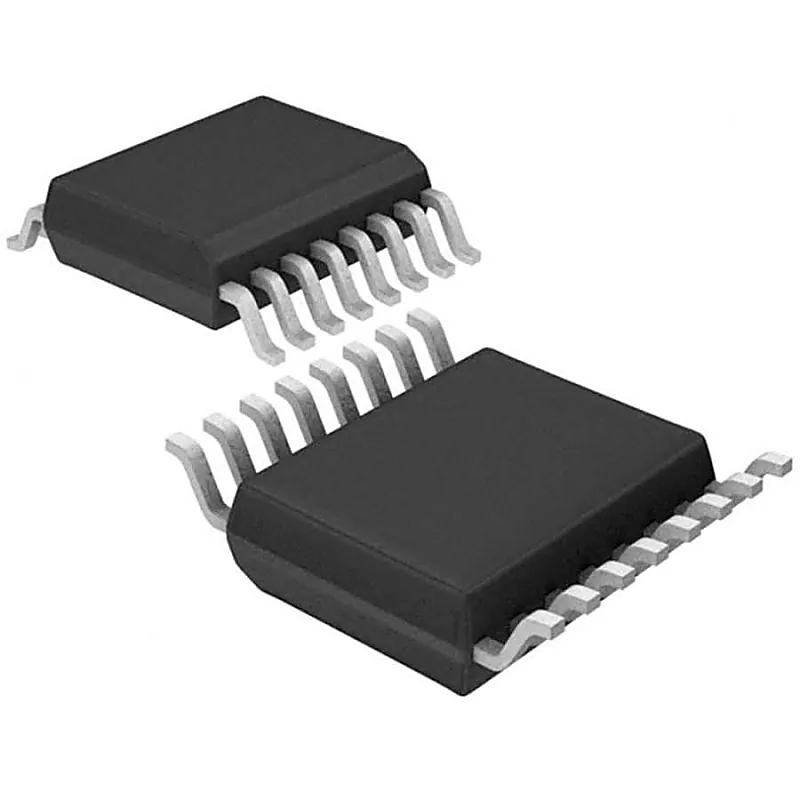

UC3706 IC - (SMD Package) - Dual Output Mosfet Driver IC

The UC3706 family of output drivers are made with a high-speed Schottky process to interface between low-level control functions and high-power switching devices - particularly power MOSFET's. These devices implement three generalized functions as outlined below. First: They accept a single-ended, low-current digital input of either polarity and process it to activate a pair of high-current, totem pole outputs which can source or sink up to 1.5A each. Second: They provide an optional single-ended to push-pull conversion through the use of an internal flip-flop driven by double-pulsesuppression logic. With the flip-flop disabled, the outputs work in parallel for 3.0A capability. Third: Protection functions are also included for pulse-by-pulse current limiting, automatic deadband control, and thermal shutdown. These devices are available in a two-watt plastic “bat-wing” DIP for operation over a 0°C to 70°C temperature range and, with reduced power, in a hermetically sealed cerdip for -55°C to +125°C operation. Also available in surface mount Q and L packages. FEATURES:- • Dual, 1.5A Totem Pole Outputs • 40nsec Rise and Fall into 1000pF • Parallel or Push-Pull Operation • Single-Ended to Push-Pull Conversion • High-Speed, Power MOSFET Compatible • Low Cross-Conduction Current Spike • Analog, Latched Shutdown • Internal Deadband Inhibit Circuit • Low Quiescent Current • 5 to 40V Operation • Thermal Shutdown Protection • 16-Pin Dual-In-Line Package • 20-Pin Surface Mount Package
