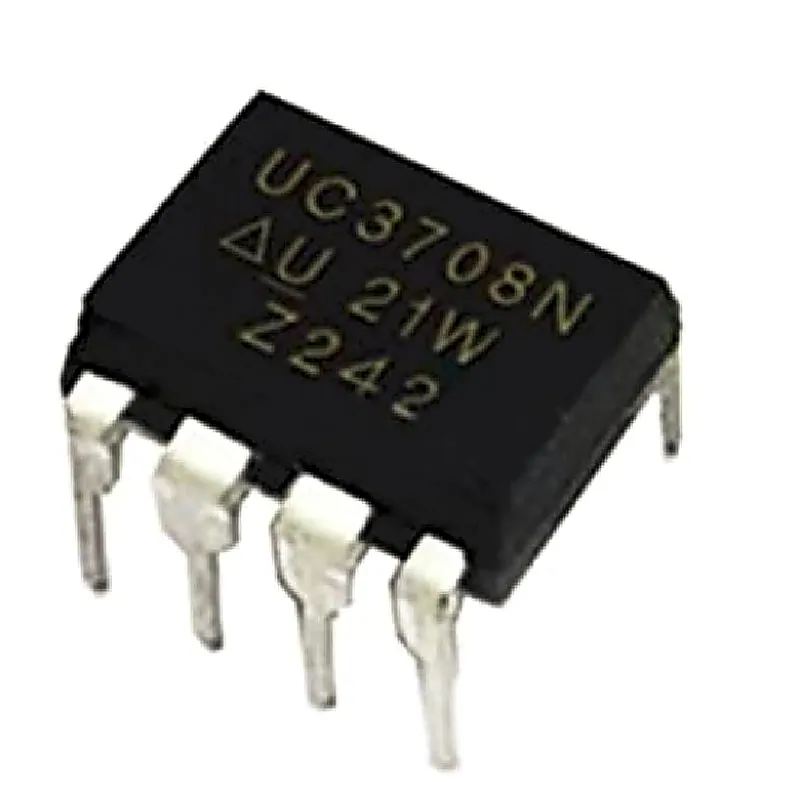

UC3708 IC Dual Non-Inverting Power Driver IC

UC3708 IC Dual Non-Inverting Power Driver IC, The UC1708 family of power drivers is made with a high-speed, high-voltage, Schottky process to interface control functions and high-power switching devices – particularly power MOSFETs. Operating over a 5 V to 35 V supply range, these devices contain two independent channels. The A and B inputs are compatible with TTL and CMOS logic families but can withstand input voltages as high as VIN. Each output can source or sink up to 3 A as long as power dissipation limits are not exceeded. Although each output can be activated independently with its own inputs, they can be forced low in common through the action of either a digital high signal at the Shutdown terminal or by forcing the Enable terminal low. The Shutdown terminal will only force the outputs low, it will not affect the behavior of the rest of the device. The Enable terminal effectively places the device in an under-voltage lockout, reducing power consumption by as much as 90%. During under-voltage and disable (Enable terminal forced low) conditions, the outputs are held in a self-biasing, low-voltage, state. Features:- High-Speed, Power MOSFET Compatible 3.0A Peak Current Totem Pole Output Efficient High-Frequency Operation 5 to 35V Operation Low Cross-Conduction Current Spike 25ns Rise and Fall Times Enable and Shutdown Functions 25ns Propagation Delays Wide Input Voltage Range Thermal Shutdown and Under-Voltage ESD Protection to 2kV Protection Specifications:- Supply Voltage : 35V Output Current Steady-State : 0.5A Output Current Peak Transient : 3A Output Voltage : -0.3V to 0.3V Enable and Shutdown Inputs –0.3V to 6.2V A and B Inputs : –0.3V to + 0.3V Operating Junction Temperature : 150 °C Storage Temperature Range : –65 to 150 °C Lead Temperature : 300 °C Package Includes:- 1 x UC3708 IC Dual Non-Inverting Power Driver IC
