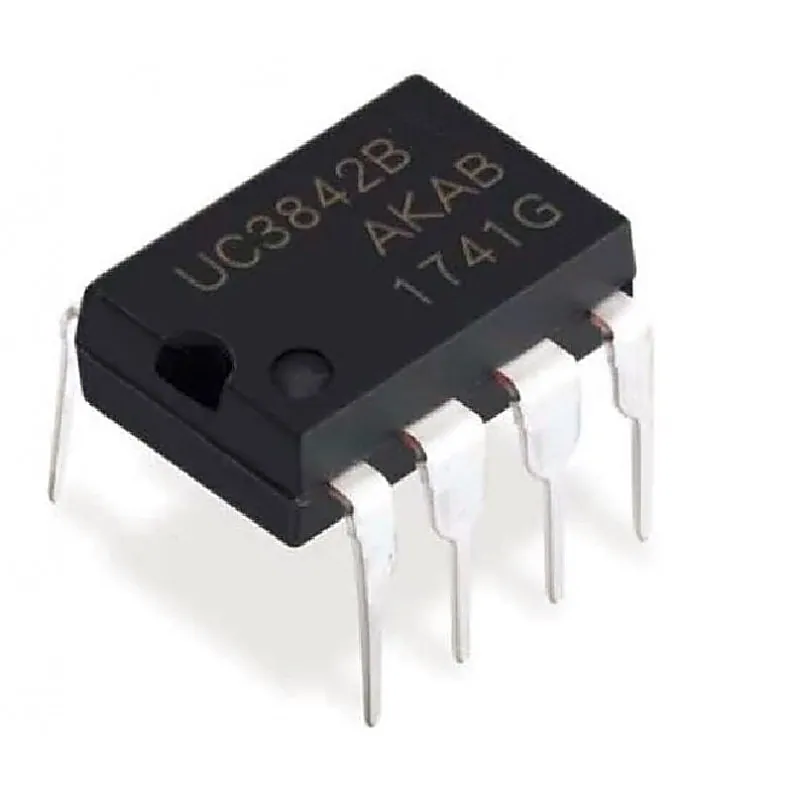

UC3842B High Performance Current Mode PWM Controller IC DIP-8 Package

The UC3842 is available in an 8-Pin mini-DIP the necessary features to implement off-line, fixed-frequency current-mode control schemes with minimal external parts count. This technique results in improved line regulation, enhanced load response characteristics, and a simpler, easier to design control loop. Topological advantages include inherent pulse-by-pulse current limiting. Protection circuitry includes built-in under-voltage lock-out and current limiting. Other features include fully-latched operation, a 1% trimmed bandgap reference, and a start-up current less than 1mA. These devices feature a totem-pole output designed to source and sink high peak current from a capacitive load, such as the gate of a power MOSFET. Consistent with N-channel power devices, the output is low in the OFF-state. Features:- Low Start-Up And Operating Current Under voltage Lockout With Hysteresis Internally Trimmed Reference With Under voltage Lockout Current Limiting Trimmed Oscillator For Precise Frequency Control Current Mode Operation To 500khz Oscillator Frequency Guaranteed At 250khz Latching PWM For Cycle-By-Cycle High Current Totem Pole Output Automatic Feed Forward Compensation Specifications:- Manufacturer Part No: UC2842BN Series: UC2842B Operating Supply Voltage: 30V Output Voltage: 4.95V to 5.05V Output Current: 1A Topology: Boost, Flyback, Forward Number of Outputs: 1 Output Switching Frequency: 500kHz Duty Cycle Max: 100% Operating Temperature Range: -40°C ~ +150°C Fall Time: 50ns Rise Time: 50 ns Mounting Style: Through Hole Package/Case: DIP-8 Applications:- SMPS (Switch Mode Power Supplies) circuits DC-DC converter circuits Electronics power supply Battery drain circuit Load machines Package Includes:- 1 x UC3842B High Performance Current Mode PWM Controller IC DIP-8 Package
