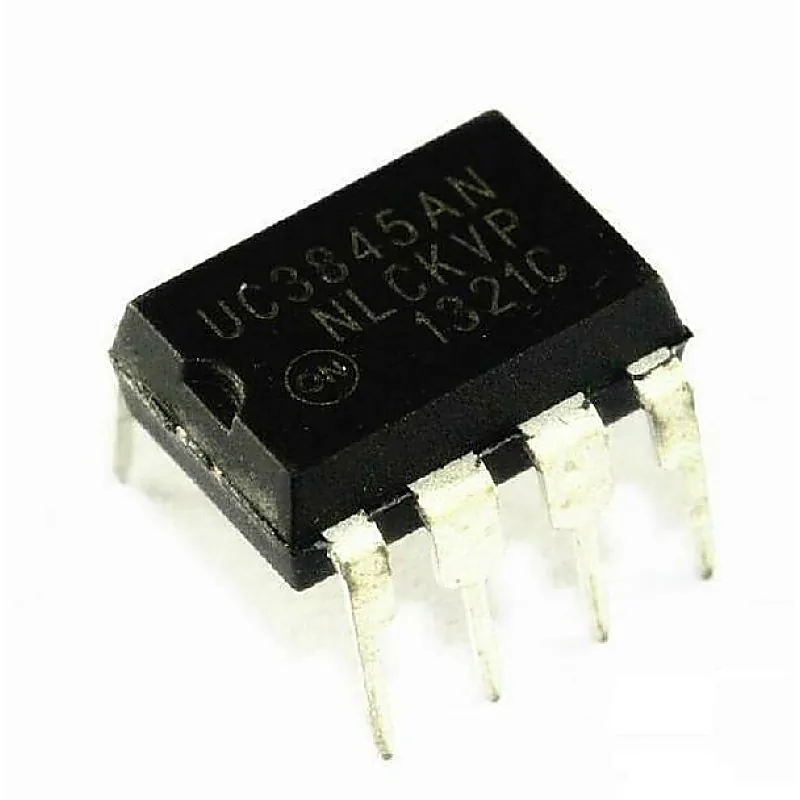

UC3845 Current Mode PWM Controller IC DIP-8 Package
UC3845 Current Mode PWM Controller IC DIP-8 Package
The UC3845 fixed frequency current mode controller is specifically designed for off-line and DC-to-DC converter applications offering the designer a cost effective solution with minimal external components. These integrated circuits feature a trimmed oscillator for precise duty cycle control, a temp
+ 18% GST (added at checkout)
In stock — 1741 units ready
- Fixed Frequency Current-Mode PWM Controller
- Trimmed Oscillator Discharge Current for Precise Duty Cycle Control
- Current Mode Operation to 500 kHz
- Automatic Feed Forward Compensation
- Latching PWM for Cycle−By−Cycle Current Limiting
- Internally Trimmed Reference with Under voltage Lockout
- High Current Totem Pole Output
- Under voltage Lockout with Hysteresis
- Low Startup and Operating Current
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
The UC3845 fixed frequency current mode controller is specifically designed for off-line and DC-to-DC converter applications offering the designer a cost effective solution with minimal external components. These integrated circuits feature a trimmed oscillator for precise duty cycle control, a temperature compensated reference, high gain error amplifier, current sensing comparator, and a high current totem pole output ideally suited for driving a power MOSFET. Features:- Fixed Frequency Current-Mode PWM Controller Trimmed Oscillator Discharge Current for Precise Duty Cycle Control Current Mode Operation to 500 kHz Automatic Feed Forward Compensation Latching PWM for Cycle−By−Cycle Current Limiting Internally Trimmed Reference with Under voltage Lockout High Current Totem Pole Output Under voltage Lockout with Hysteresis Low Startup and Operating Current Package Includes : 1 x UC3845 Current Mode PWM Controller IC DIP-8 Package
