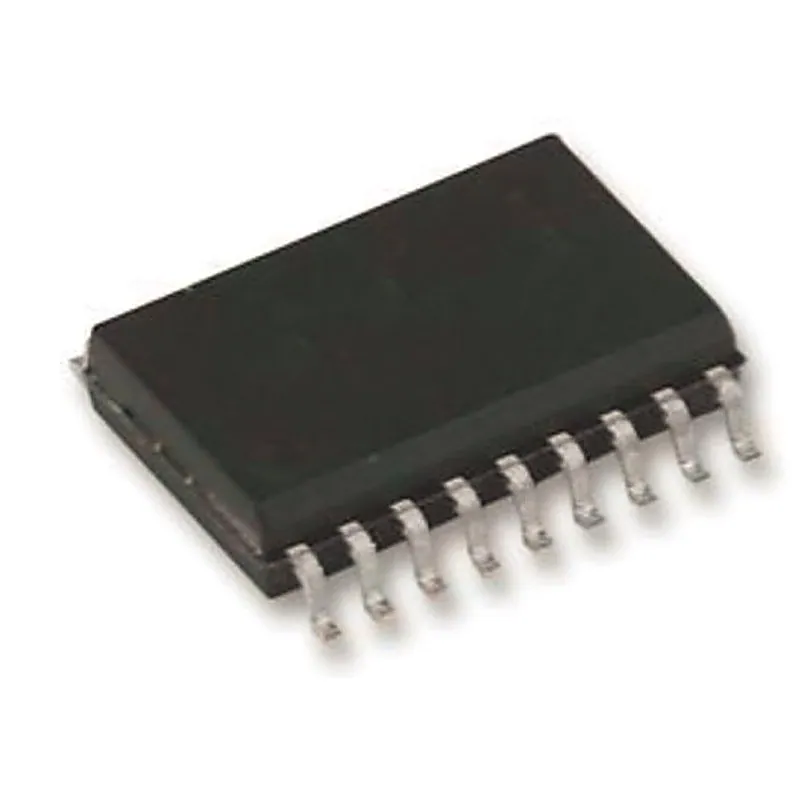

ULN2803 IC - (SMD Package) - 8 Darlington Transistor Arrays IC

The ULN2803APG / AFWG Series are high−voltage, high−current darlington drivers comprised of eight NPN darlington pairs. All units feature integral clamp diodes for switching inductive loads. Applications include relay, hammer, lamp and display (LED) drivers. Features:- Output current (single output) 500 mA (max) High sustaining voltage output 50 V (min) Output clamp diodes Inputs compatible with various types of logic. Package Type−APG : DIP−18pin Specification:- Rating Symbol Value Unit Output sustaining voltage VCE (SUS) −0.5 to 50 V Output current IOUT 500 mA / ch Input voltage VIN −0.5 to 30 V Clamp diode reverse voltage VR 50 V Clamp diode forward current IF 500 mA Power dissipation PD 1.47 W Operating temperature Topr −40 to 85 °C Storage temperature Tstg −55 to 150 °C Related Document:- ULN2803 IC Data Sheet
