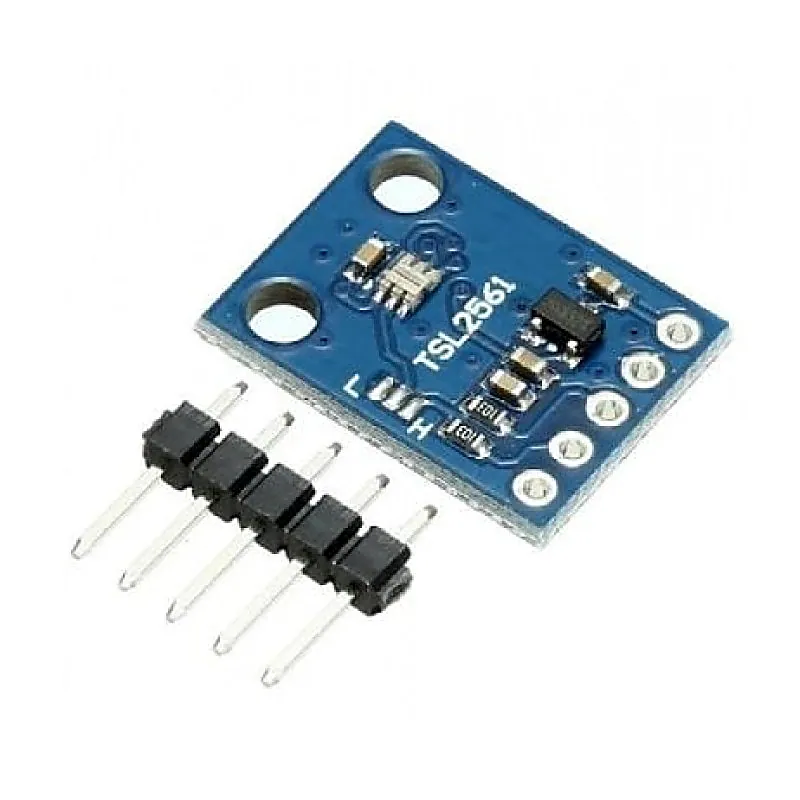

Unsoldered GY-2561 TSL2561 Luminosity Sensor Light Intensity Module

The TSL2561 Luminosity Sensor Breakout is a sophisticated light sensor that has a flat response across most of the visible spectrum. Unlike simpler sensors, the TSL2561 measures both infrared and visible light to better approximate the response of the human eye. The TSL2561 is capable of direct I2C communication and is able to conduct specific light ranges from 0.1 40k+ Lux easily. Additionally, the TSL12561 contains two integrating analog-to-digital converters (ADC) that integrate currents from two photodiodes, simultaneously. Features and Specifications: Temperature range: -30 to 80 C Dynamic range (Lux): 0.1 to 40,000 Lux Voltage range: 2.7-3.6V Interface: I2C Power supply: 3.3v ~ 5v low supply current max: 0.6mA Selectable detection modes High-resolution 16-bit digital output at 400 kHz I2C Fast-Modeide dynamic range: 0.1 40,000 LUX Wide operating temperature range: -40C to 85C Package Includes: 1 x Unsoldered GY-2561 TSL2561 Luminosity Sensor Light Intensity Module
